Overview

Essential details

• Applicable Industries:

• Printing Shops, Food & Beverage Shops

• Showroom Location:

• Spain

• Condition:

• New

• Type:

• Die-cutting Machine

• Computerized:

• Yes

• Place of Origin:

• Zhejiang, China

• Brand Name:

• ZONTEN

• Voltage:

• 380V 50Hz

• Dimension(L*W*H):

• 3200*1310*1700MM

• Weight:

• 2750 kg

• Warranty:

• 1 Year

• Production Capacity:

• 50 m/min

• Key Selling Points:

• High-accuracy

• Max. workable width:

• 520mm

• Machinery Test Report:

• Provided

• Video outgoing-inspection:

• Provided

• Marketing Type:

• Hot Product 2019

• Warranty of core components:

• 1 Year

• Core Components:

• Motor, Gear, Gearbox

• PLC Brand:

• DELTA

• Semi rotary die cutting speed:

• 300 cycle/min

• full rotary die cutting speed:

• 130m/min

• unwind diameter:

• 700mm

• rewind diameter:

• 700mm

• Die cutting size:

• 400*310mm (L*W)

• UV flexo printing unit:

• optional

• Silk screen print unit:

• optional

• cold foil unit:

• optional

• hot foil stamping unit:

• optional

• IML sheet conveyor:

• optional

Supply Ability

• Supply Ability

• 20 Set/Sets per Month

Packaging & delivery

• Packaging Details

Export standard wooden case.

• Port

Ningbo Port, China

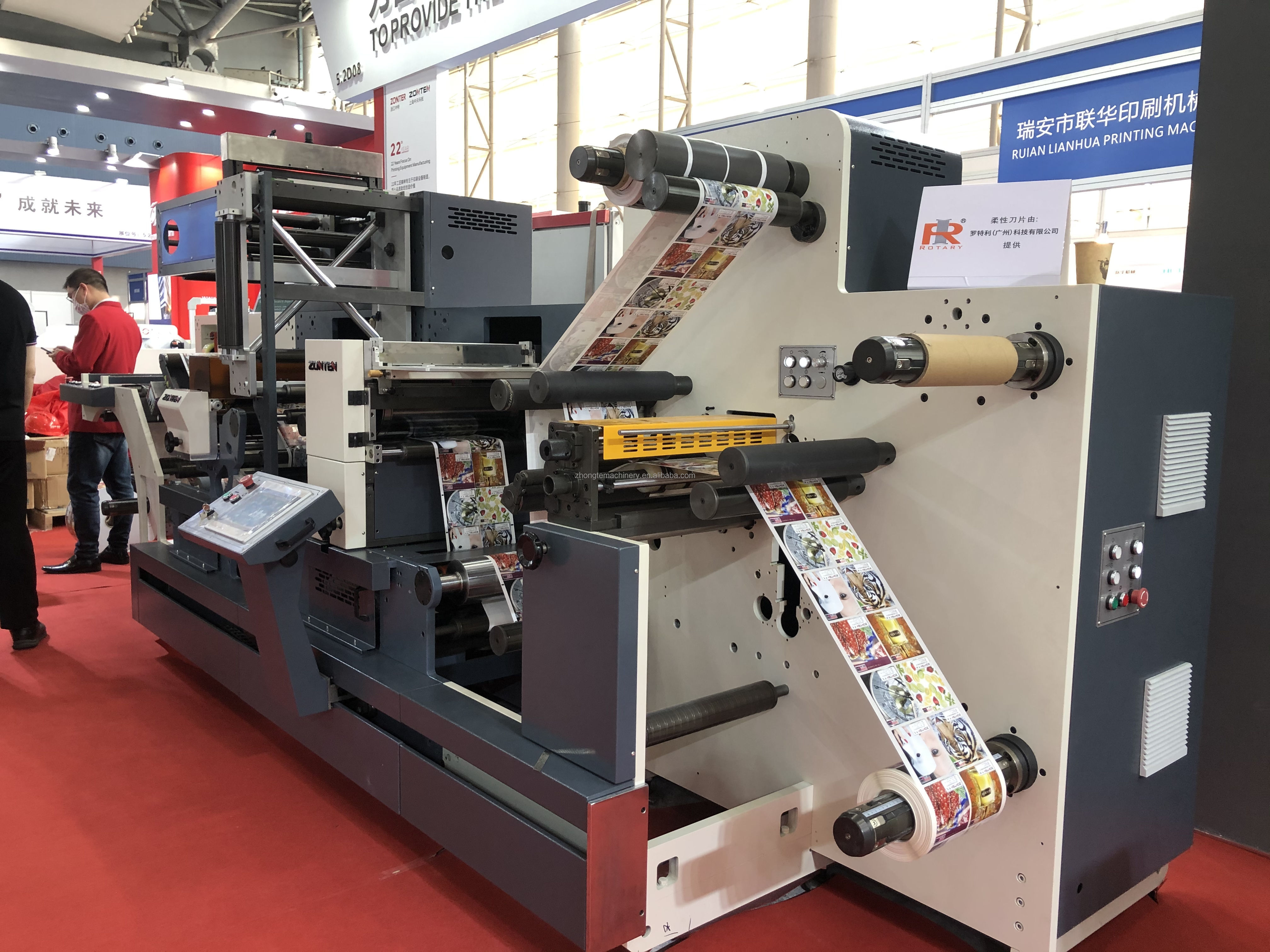

• Picture Example:

•

• Lead time:

• Quantity(sets)	1 - 2	>2
  Lead time (days)	45	To be negotiated

Video Description

00:00

00:57

Products Description

Details Images

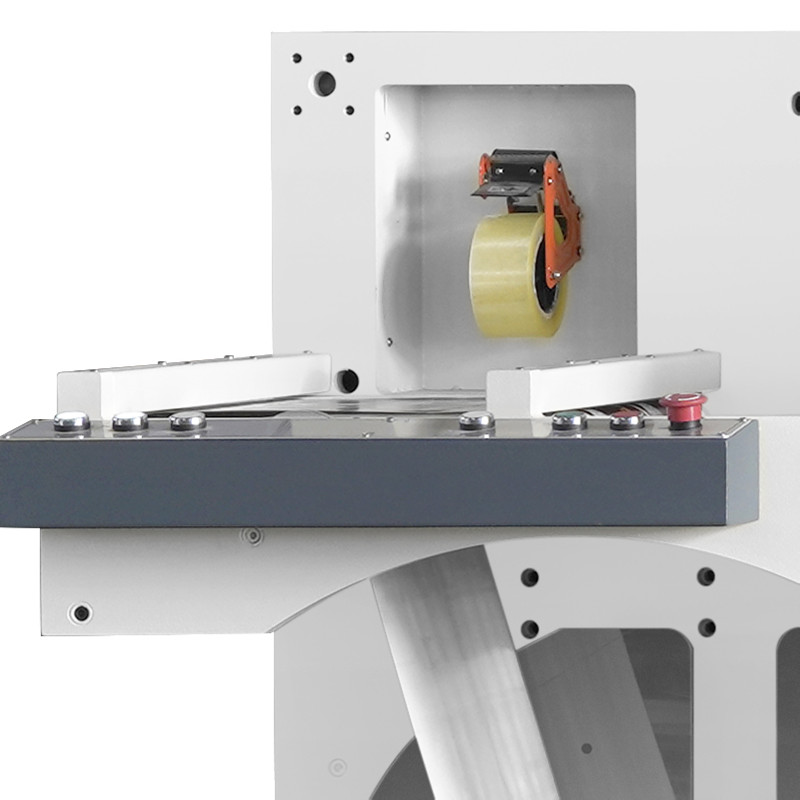

Paper connect platform

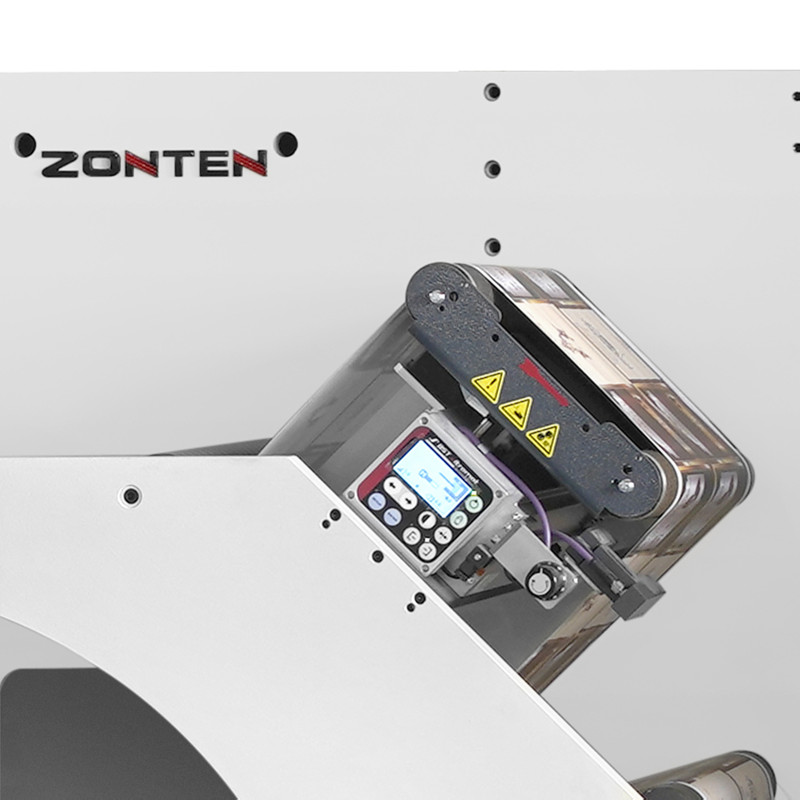

BST web guider

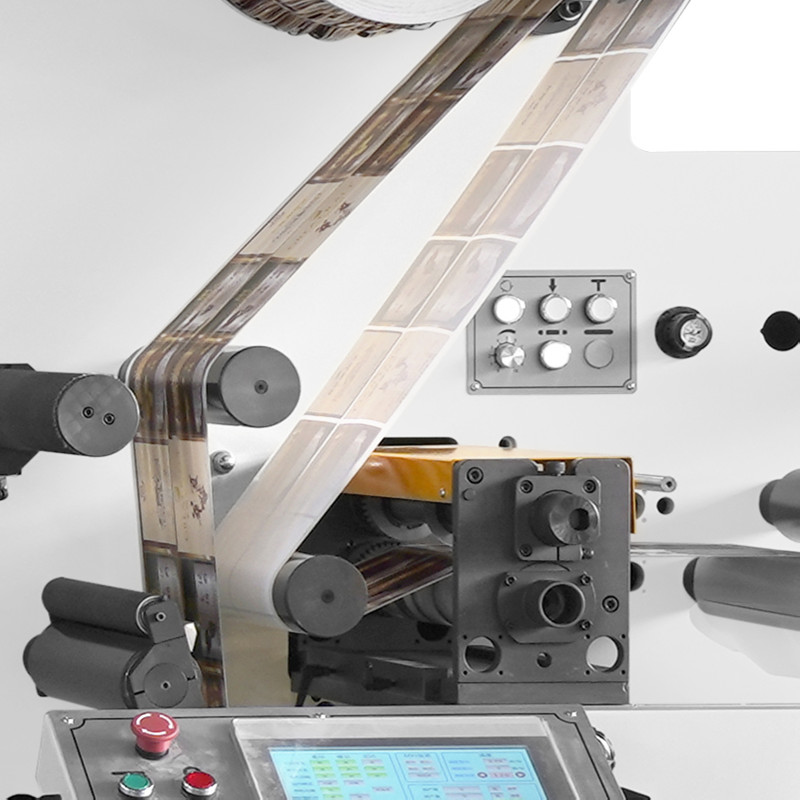

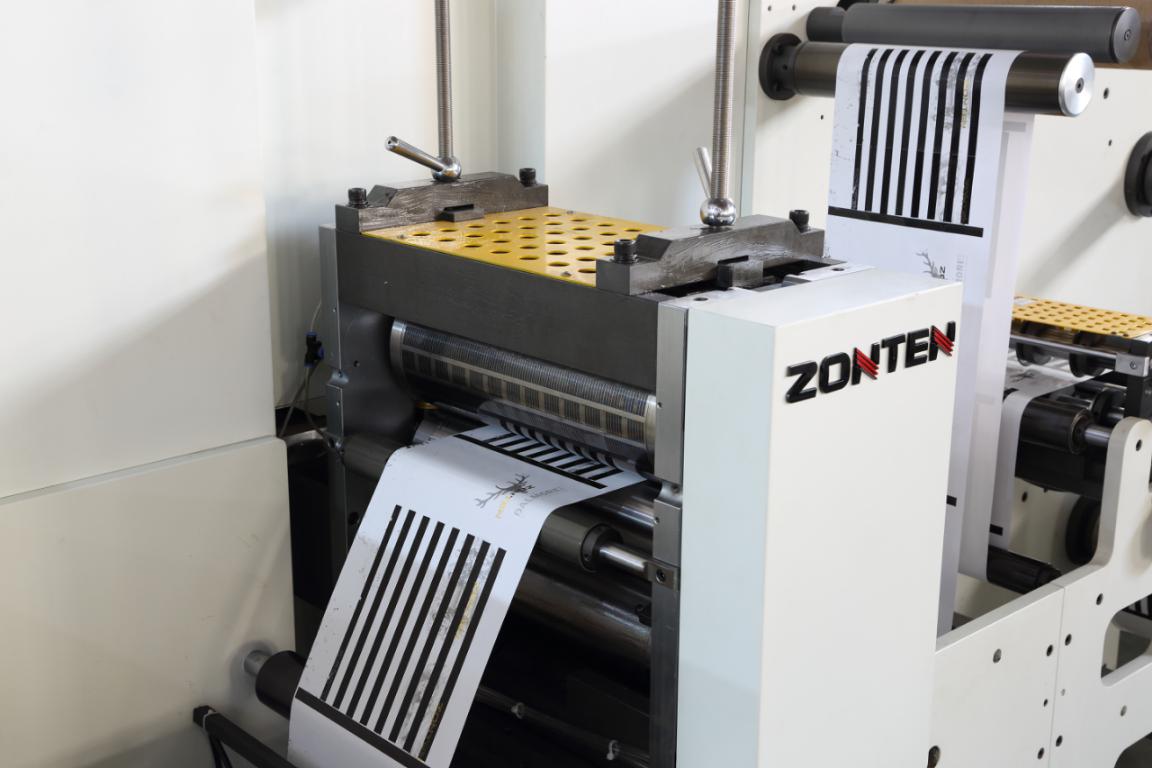

Semi rotary die cut unit

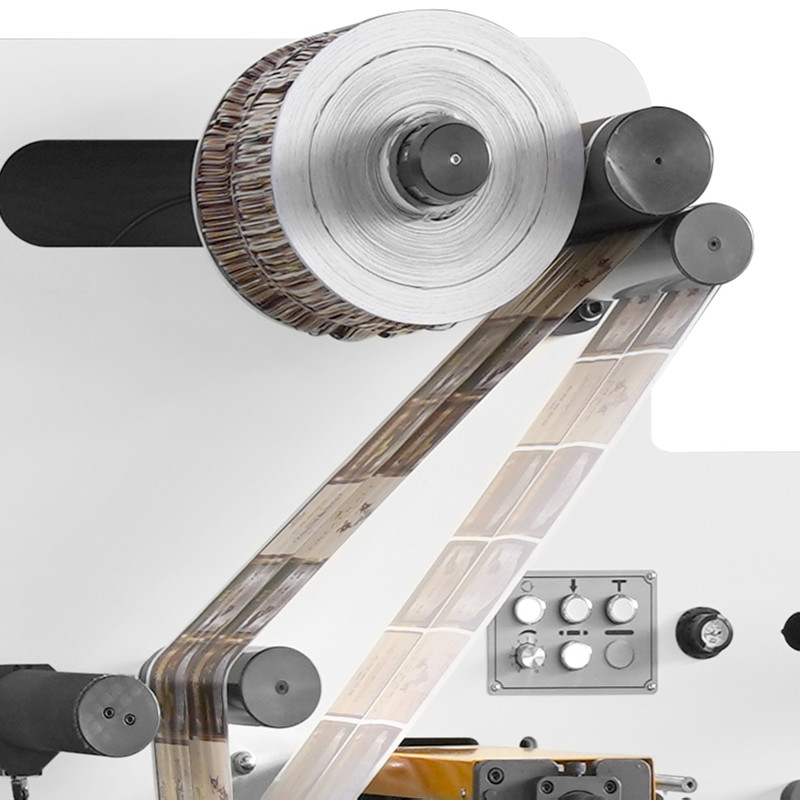

Snow ball waste collect rewind

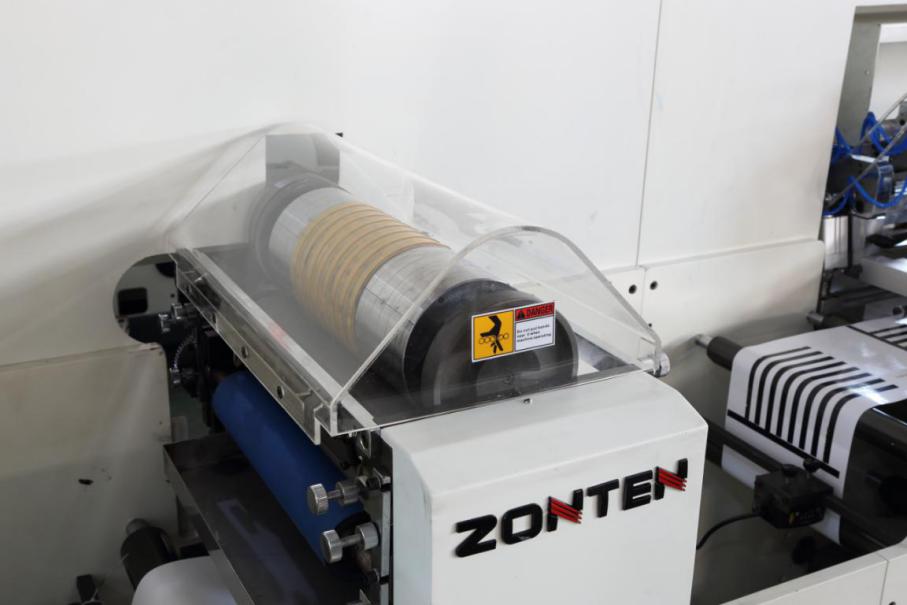

Slit unit

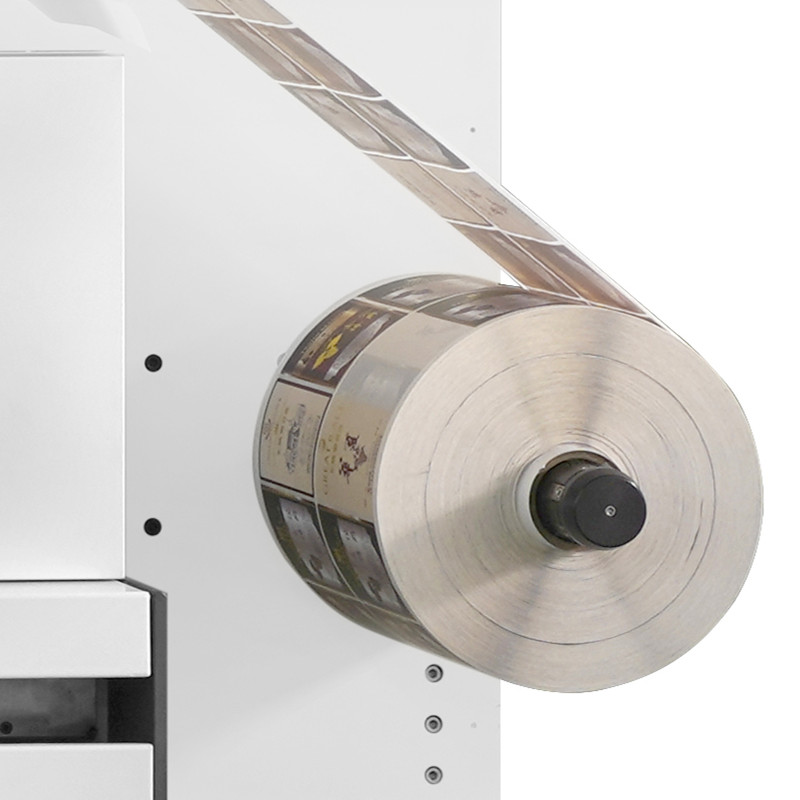

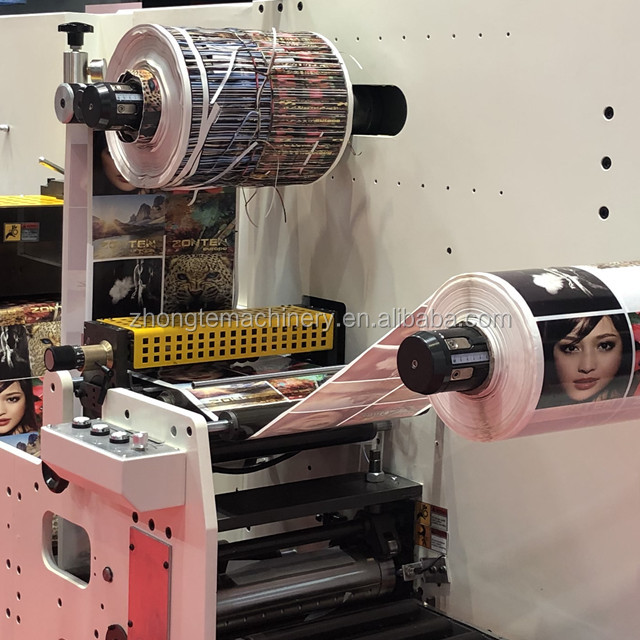

Rewind finish rolls

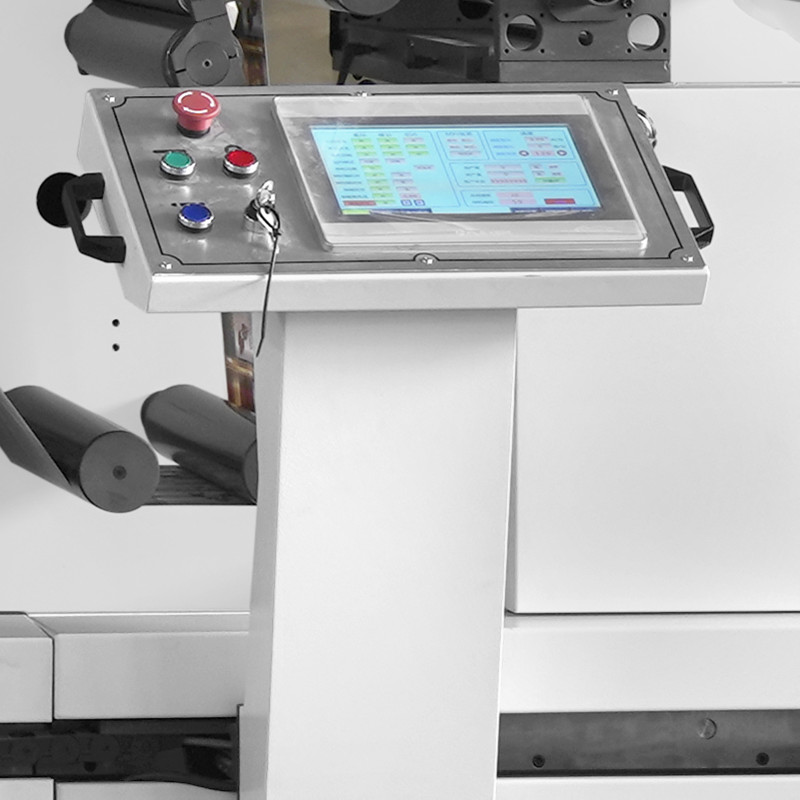

Movable control panel -touch screen

Optional: flexo unit with uv dryer

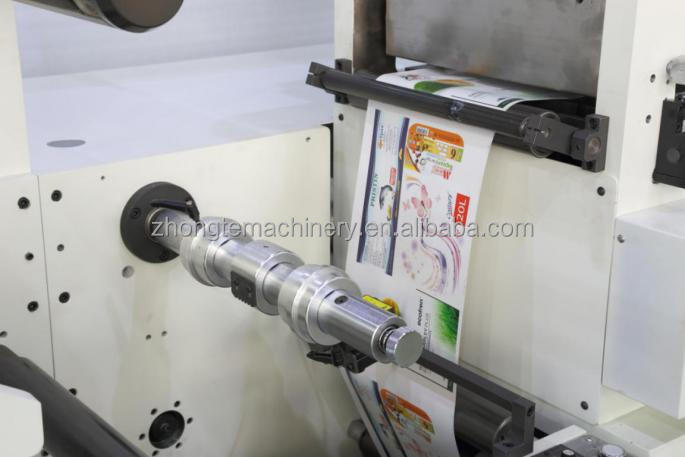

flexo print cylinder

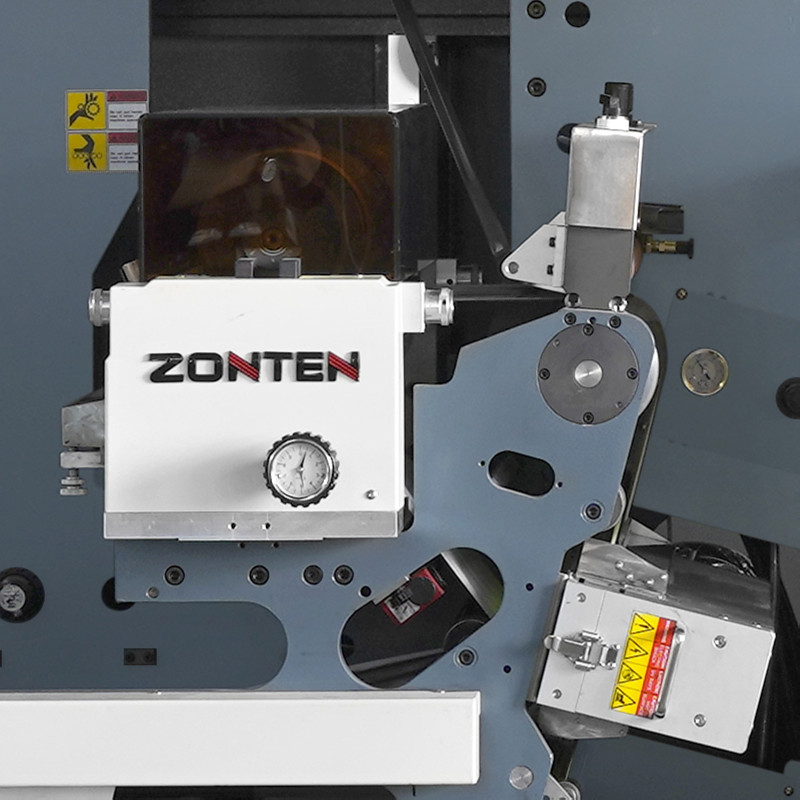

Optional: Cold foil unit

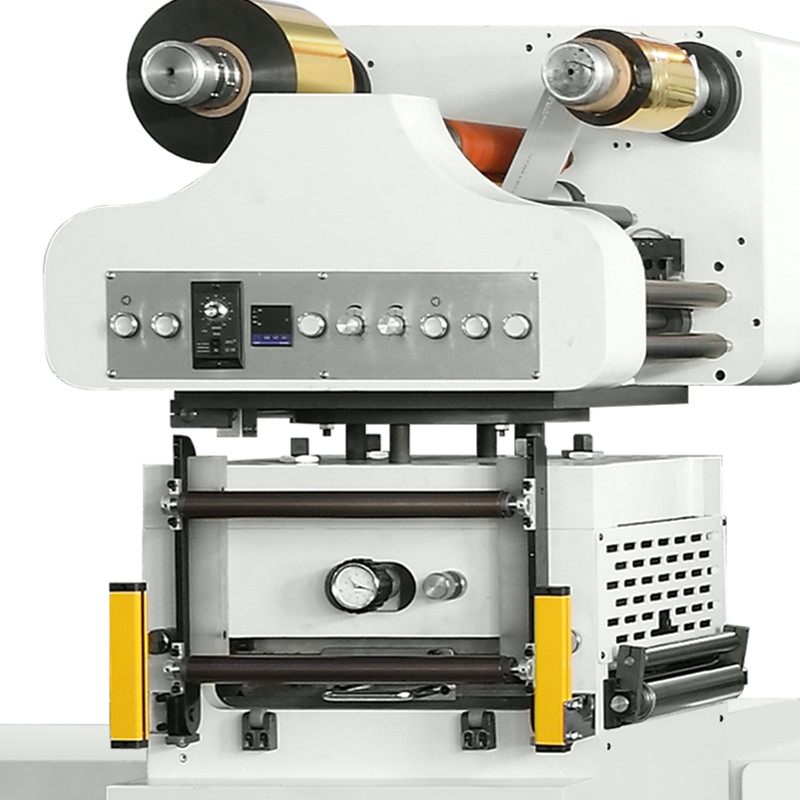

Optional: flat bed hot foil stamping unit

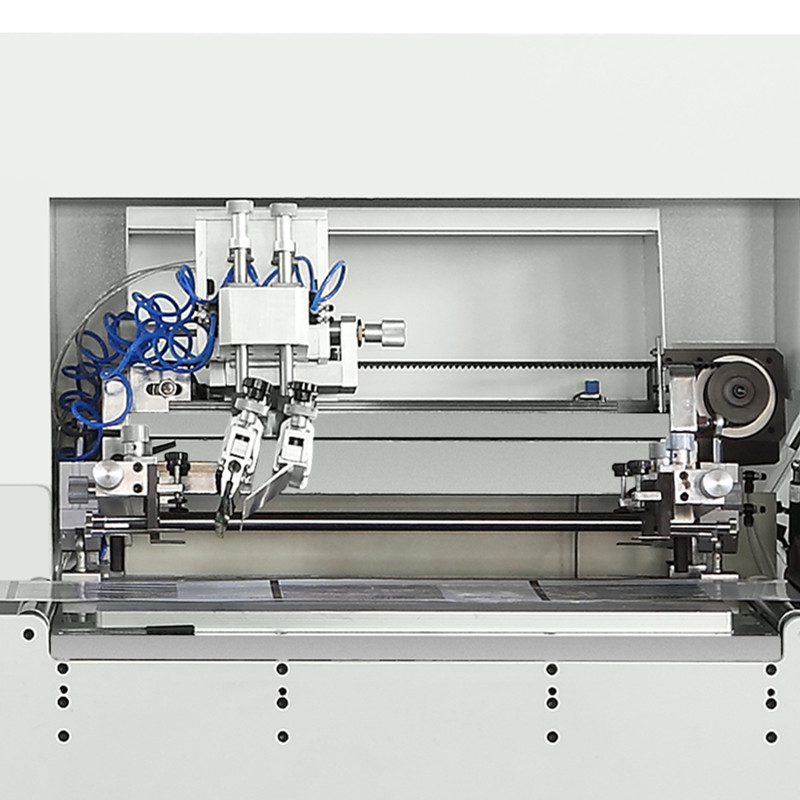

Optional: ptional: IML die cut unit

Optional: rotary lamination

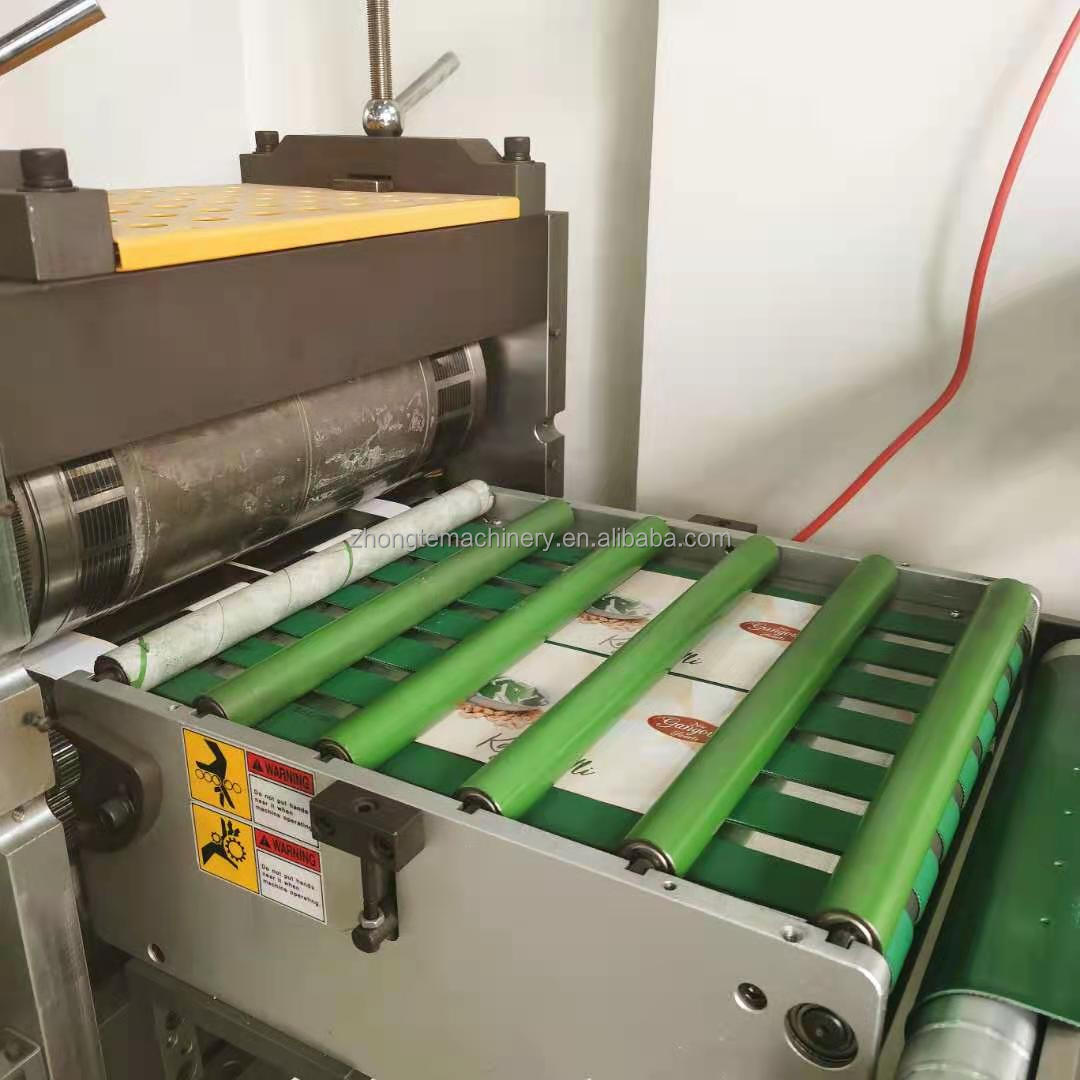

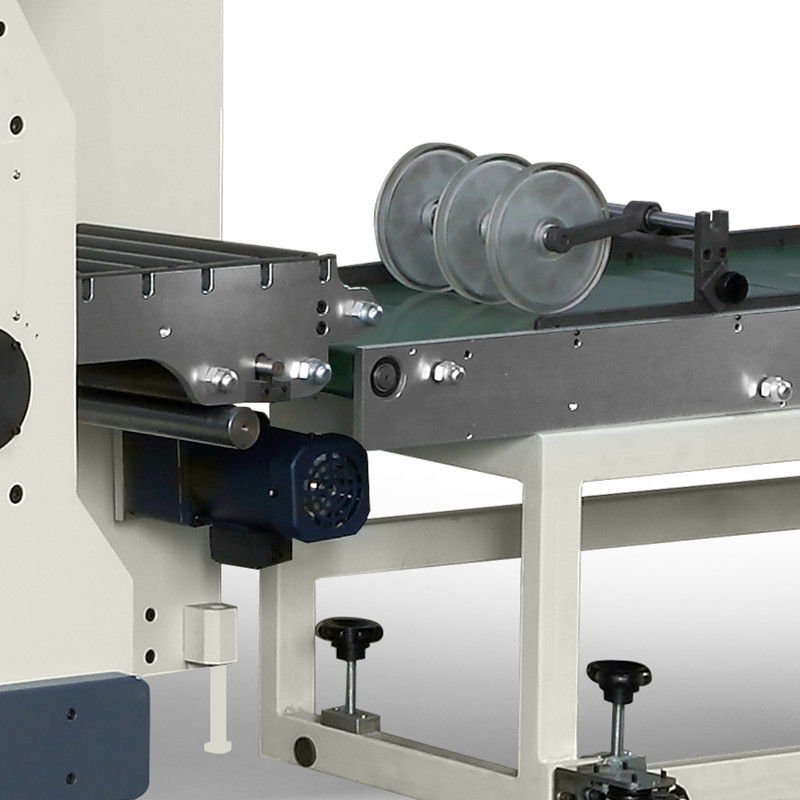

Optional: cut sheet conveyor

Optional: silk screen unit

Product Paramenters

MACHINE VIDEO:

----1). Printing Machines:
1. ZTJ-330/520 intermittent offset label printing machine: https://youtu.be/LAKyvQ9HiPg.
2. Super-320 intermittent letterpress label printing machine: https://youtu.be/4Tc-reNyngQ.
3. LRY 330/450 stack flexo label printing machine: https://youtu.be/CD4SB5Lk9To.
4. RY-330/450 flexographic label printing machine: https://youtu.be/ksr9OxenLK4.
5. flexo plate making machine: https://youtu.be/cNNZZlKWKsY.

----2). Die Cutting Machines:
1. MQ-320 die cutting machine: http://youtu.be/63abqFREC58.
2. FQ-330/450R rotary die cutting and slitting machine for blank label: https://youtu.be/n0-Z77_6LLk.
3. ZMQ-320 semi rotary die cutting machine: https://youtu.be/sgYOmfpyCPE.

----3). Slitting Machines
1. FQ-320/450 label slitting and rewinding machine: https://youtu.be/75z0rzozqkw.

----4). inspecting machines
1. ZJP inspecting machine: https://youtu.be/9H751zeIT5o.

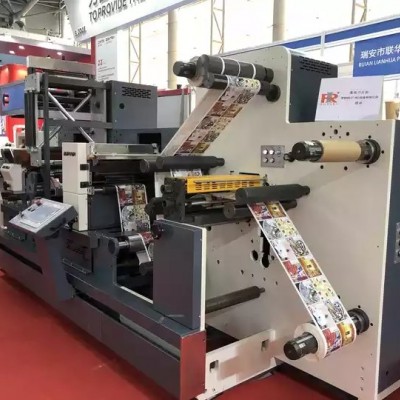

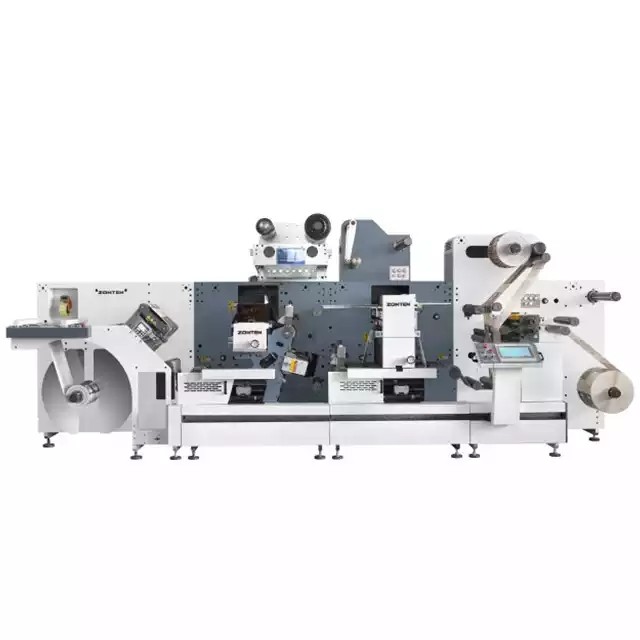

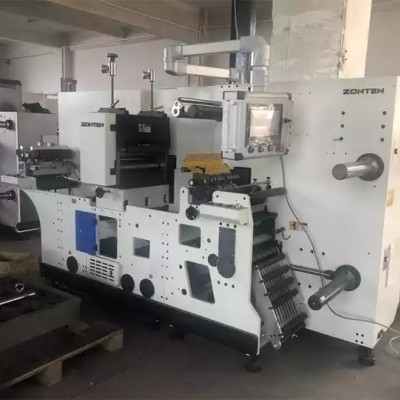

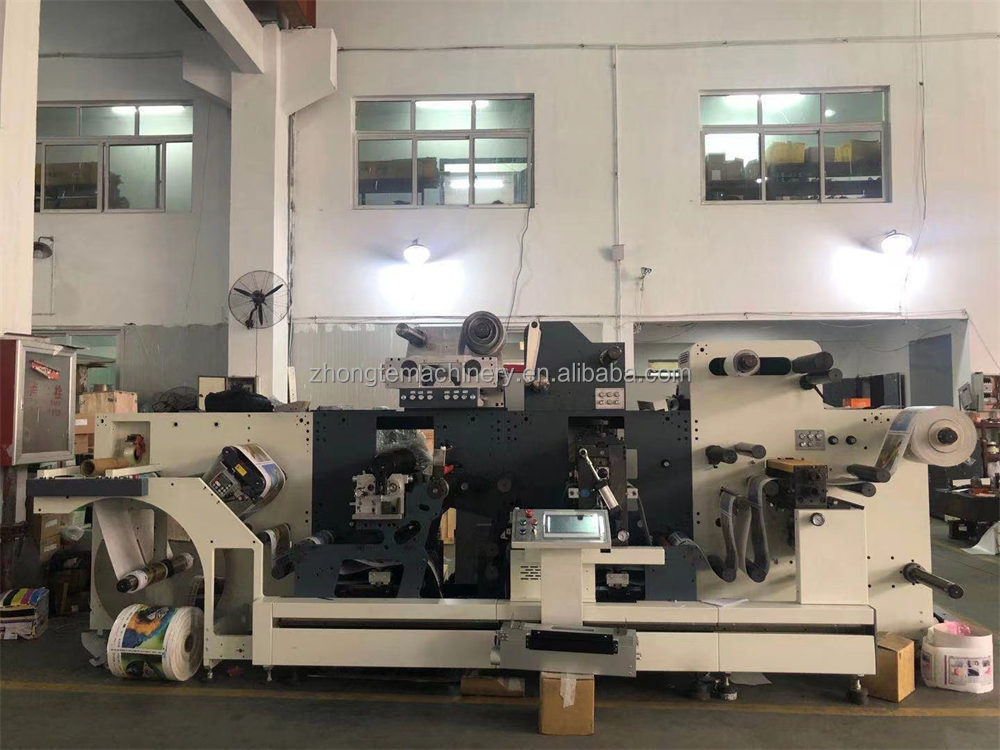

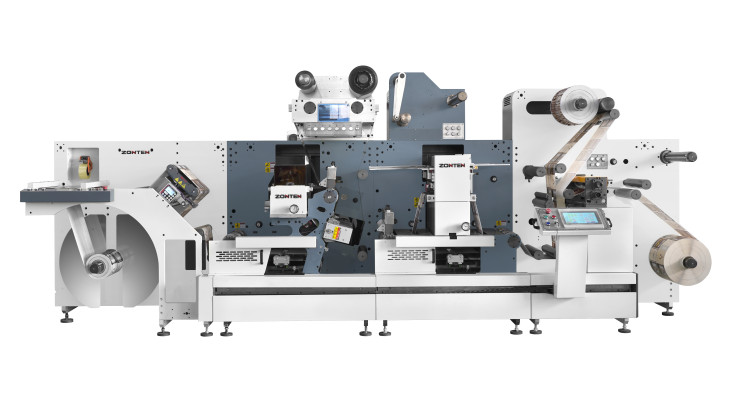

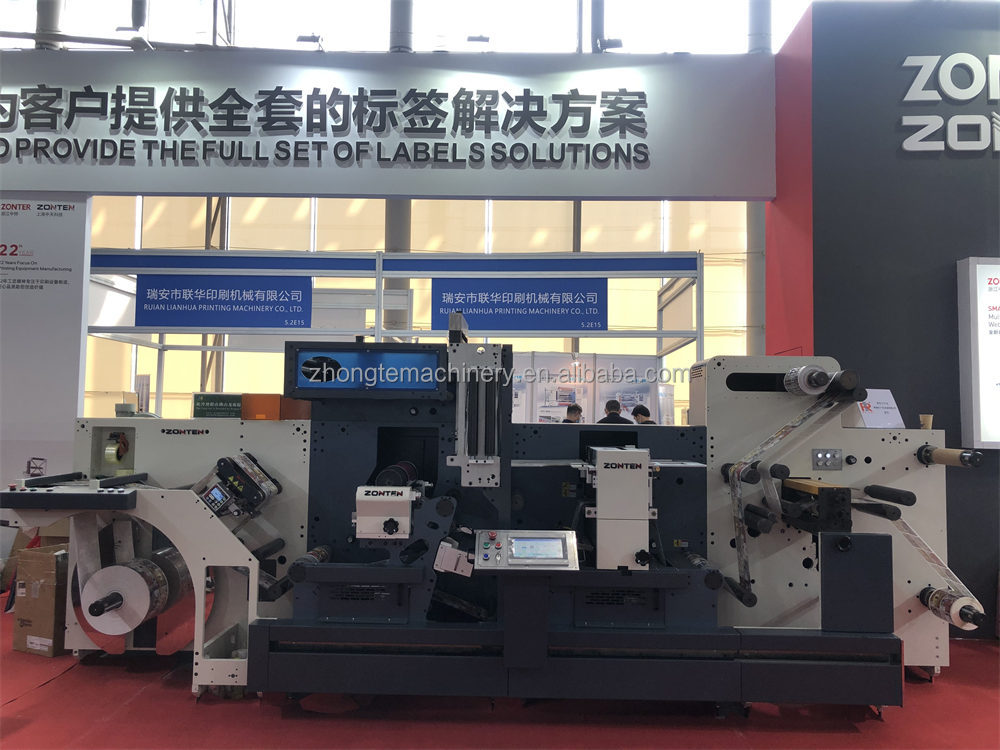

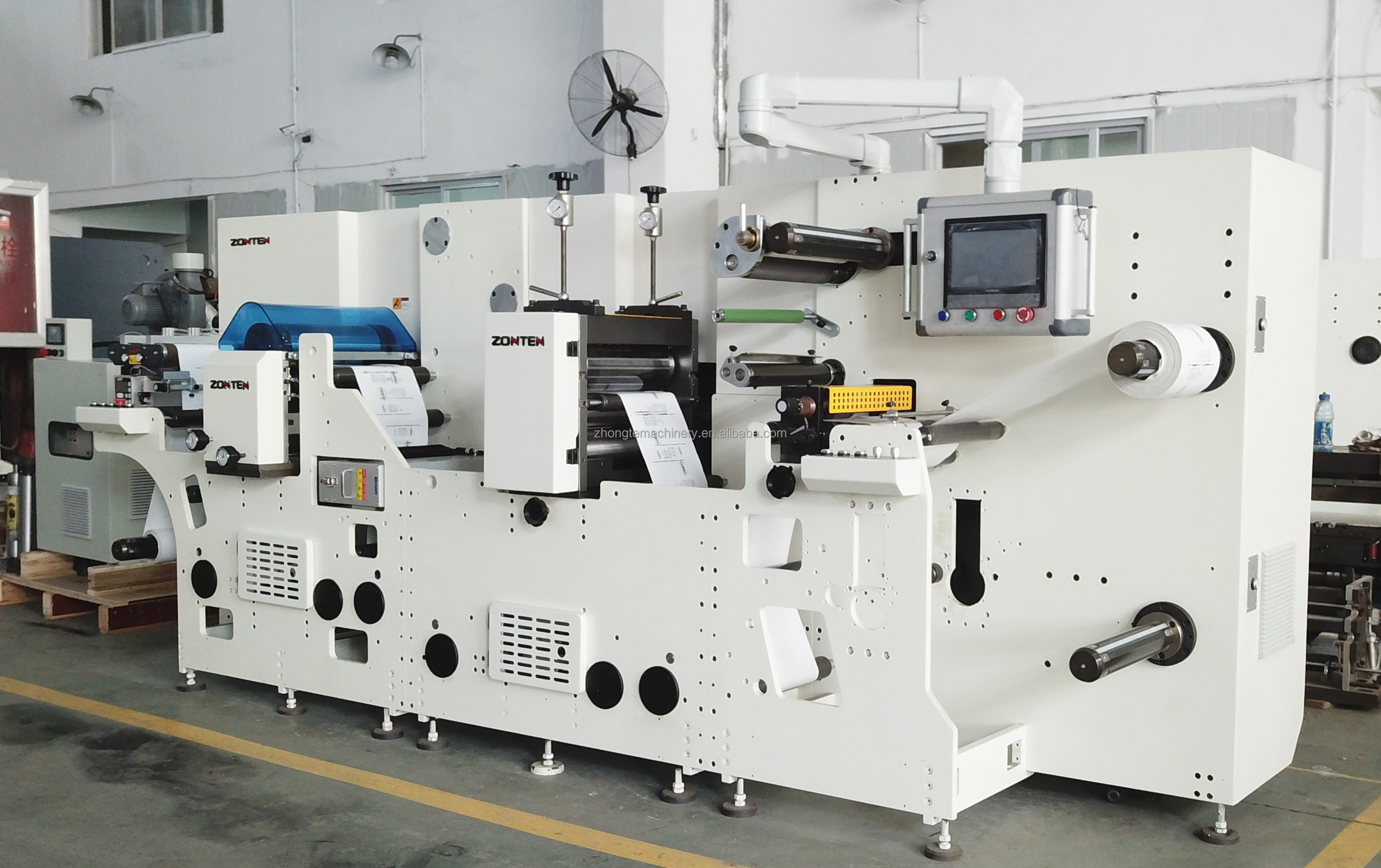

ZMQ high speed factory price label hot stamping foil semi rotary auto die cutting machine

ZMQ-320/520 is the newly developed equipment for die cutting and slitting.

it adopt servo-control system to achieve optimization control of machine which assure high accuracy and the stability of the die cutter.

automatic paper feeding, web guider, lamination, uv flexo coating, die cutting, slitting can be completed in one pass.

the machine has many advantages such as smaller floor space, lower noise, high speed, etc.

ZMQ-320/520 is an ideal option for die cutting and shaping in label printing factory, electronic industry and viscose products industry.
