Overview

Essential details

Plate Type:
Screen Printer

Condition:
New

Place of Origin:
Shandong, China

Brand Name:
XF

Usage:
Paper Printer, PCB,PET transfer film,MEMBRANE SWITCH,TEMPERED GLASS

Automatic Grade:
Semi-automatic

Color & Page:
single color

Voltage:
380V

Dimensions(L*W*H):
1500x1160x1620mm

Weight:
500KG

Certification:
ISO9001

Warranty:
2 years

After-sales Service Provided:
Field installation, commissioning and training, Overseas third-party support available

driven:
motor

speed:
adjustable

printing stroke:
adjustable

time interval:
adjustable

Supply Ability

Supply Ability
100 Piece/Pieces per Month

Packaging & delivery

Packaging Details

standard export package wooden box

Port

Qingdao

Manufacturer of horizontal-lift flat silk screen printing machine

1. Scope of application: 1)This silk screen printer series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries. 2)Suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB, PET,DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass,light guide plate,PET heating transfer film, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of PVC, which have high requirement in overprinting. 2. Feature: 1).The platform is adjustable and moveable, which make it convenient to take the material.2).vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.3).The screen printing machine adopts Japanese Mitsubishi PLC control circuit, printing and plate moving up &down are driven by independent Current Source.4).Screen Printing blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.5).Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.6).Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.7).Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune. 3. Product details: Product NameSemi auto flat silk screen printing machineModelXF-6090ConditionNewAutomatic GradeSemi AutomaticColor & PageSingle ColorVoltage380VGross Power2.45 KWDimensions(LWH)150011601620mmWeight500kgWarrantyone yearPrinting area900600mmMaximal frame8501300mmPrinting thickness30mmFlat Size900700mmPrinting frequency950HrOverprint accuracy0.01mmFlat precision+-0.05mmPrinting pressure0.6-0.8kg/square cmPayment & shipping terms Minimum Order Quantity:1 Set/SetsPort:QingdaoPackaging Details:wooden case,Dimension 17001360*1820mm,Weight:520kg,it is suitble by sea.Delivery Time:one weekPayment Terms:L/C,T/T,Supply Ability:100 Set/Sets per Month After-sale service:1) According to the requests of the consumers,install & debug product.2) According to the requests of the consumers, the use and other aspects of technical guidance.3) To ensure the supply of repair parts.4) Responsible for the repair service.5) On the product of "Three Guarantees".
Technical parameters ModelXF-4060XF-5070XF-6090XF-80120 XF-70140XF-10200Max Printing area(mm)4006005007006009008001200 7001400 10002000Printing table size(mm)50070060080070010009001300 8001500 11002100Max frame(mm)650930700110085013009501630 9001600 13502430Flat precision(mm)±0.05±0.05±0.05±0.01±0.01±0.01Printing thickness(mm)30303030 30 30Over print accuracy(mm)0.010.010.010.01 0.01 0.01Printing pressure kg/cm20.6-0.80.6-0.80.6-0.80.6-0.8 0.6-0.8 0.6-0.8Printing frequency /Hr11501050950850 850 700Voltage/power V/kw380/2.1380/2.45380/2.45380/4.15 380/4.15 380/5.6Equipment weight kg380450500580 630 750Overall dimensions(LWH)(mm)113010501620128011001620150011601620186014001900 206013001900 260015001680 4. Product & some of componets picture:

1. Scope of application: 1)This silk screen printer series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries. 2)Suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB, PET,DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass,light guide plate,PET heating transfer film, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of PVC, which have high requirement in overprinting. 2. Feature: 1).The platform is adjustable and moveable, which make it convenient to take the material.2).vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.3).The screen printing machine adopts Japanese Mitsubishi PLC control circuit, printing and plate moving up &down are driven by independent Current Source.4).Screen Printing blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.5).Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.6).Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.7).Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune. 3. Product details: Product NameSemi auto flat silk screen printing machineModelXF-6090ConditionNewAutomatic GradeSemi AutomaticColor & PageSingle ColorVoltage380VGross Power2.45 KWDimensions(L*W*H)1500*1160*1620mmWeight500kgWarrantyone yearPrinting area900*600mmMaximal frame850*1300mmPrinting thickness30mmFlat Size900*700mmPrinting frequency950HrOverprint accuracy0.01mmFlat precision+-0.05mmPrinting pressure0.6-0.8kg/square cmPayment & shipping terms Minimum Order Quantity:1 Set/SetsPort:QingdaoPackaging Details:wooden case,Dimension 1700*1360*1820mm,Weight:520kg,it is suitble by sea.Delivery Time:one weekPayment Terms:L/C,T/T,Supply Ability:100 Set/Sets per Month After-sale service:1) According to the requests of the consumers,install & debug product.2) According to the requests of the consumers, the use and other aspects of technical guidance.3) To ensure the supply of repair parts.4) Responsible for the repair service.5) On the product of "Three Guarantees".

Technical parameters

ModelXF-4060XF-5070XF-6090XF-80120 XF-70140XF-10200Max Printing area(mm)400*600500*700600*900800*1200 700*1400 1000*2000Printing table size(mm)500*700600*800700*1000900*1300 800*1500 1100*2100Max frame(mm)650*930700*1100850*1300950*1630 900*1600 1350*2430Flat precision(mm)±0.05±0.05±0.05±0.01±0.01±0.01Printing thickness(mm)30303030 30 30Over print accuracy(mm)0.010.010.010.01 0.01 0.01Printing pressure kg/cm20.6-0.80.6-0.80.6-0.80.6-0.8 0.6-0.8 0.6-0.8Printing frequency /Hr11501050950850 850 700Voltage/power V/kw380/2.1380/2.45380/2.45380/4.15 380/4.15 380/5.6Equipment weight kg380450500580 630 750Overall dimensions(L*W*H)(mm)1130*1050*16201280*1100*16201500*1160*16201860*1400*1900 2060*1300*1900 2600*1500*1680

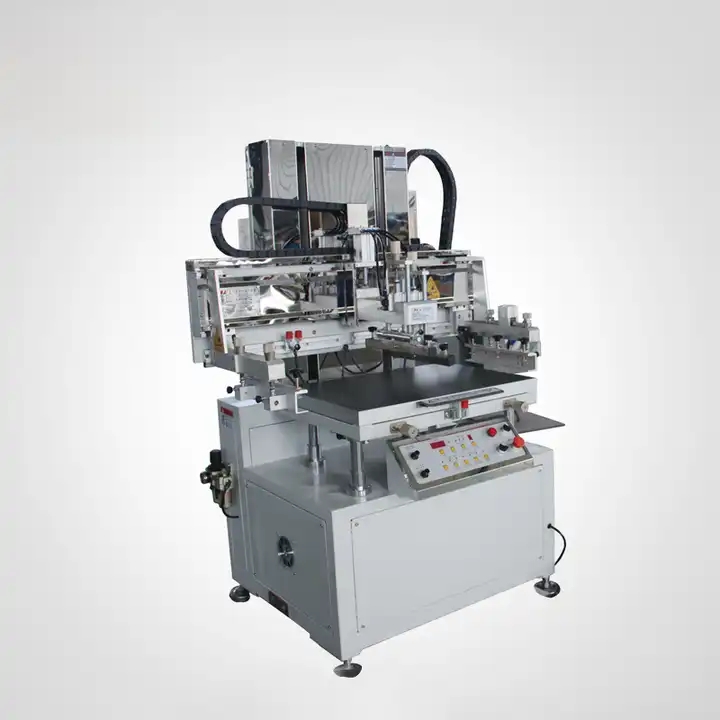

4. Product & some of componets picture:

Price	$5.00/Piece
Min quantity	1Piece
Quantity	999Piece
Deliver	In 7 days
