Overview

Essential details

• Type:

• Flexographic Printer

• Applicable Industries:

• Manufacturing Plant, Printing Shops, packaging Industry

• Condition:

• New

• Plate Type:

• Letterpress

• Place of Origin:

• Zhejiang, China

• Brand Name:

• LISHENG

• Usage:

• Paper Printer, plastic film printing, plastic bags printing, Tube Printer, Plastic Bag, Non Woven Bag, Paper Bag

• Automatic Grade:

• Automatic

• Color & Page:

• Multicolor

• Voltage:

• 220v-380v(design for customer)

• Dimensions(L*W*H):

• 6.5m*2.5m*4.0m

• Weight:

• 9500 KG

• Print Dimension:

• 960mm

• Print Speed:

• 150m/min

• Warranty:

• 1 Year

• Key Selling Points:

• Multi Color

• Machinery Test Report:

• Provided

• Video outgoing-inspection:

• Provided

• Warranty of core components:

• 1 Year

• Core Components:

• Motor, Pump, Gear, PLC, Gearbox, Pressure vessel

• Structure:

• CI

• Model:

• YTC-41000

• Printing color:

• four colors

• Max. Machine Speed:

• 150m/min

• Max. Printing speed:

• 120m/min

• Doctor blade:

• Chamber doctor blade

• Printing material:

• paper, film non woven fabric pe opp napkin

• After Warranty Service:

• Field maintenance and repair service

• Printing Width:

• 560mm-1560mm

• Plate Thickness:

• 1.7mm 2.84mm 2.28mm

• Printing length:

• 300-800mm

Supply Ability

• Supply Ability

• 45 Set/Sets per Month

Packaging & delivery

• Packaging Details

film packing and wooden packing ( with flexible wrapping and wooden case.

• Port

NINGBO

• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	60	To be negotiated

Video Description

00:00

00:37

Product Description

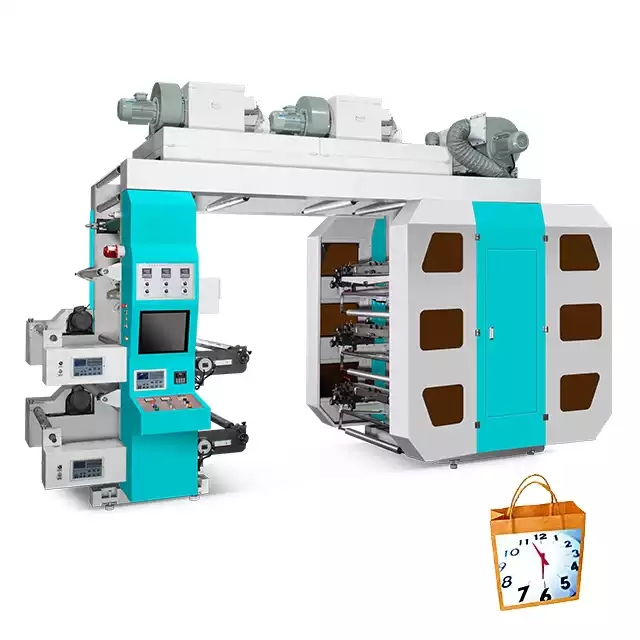

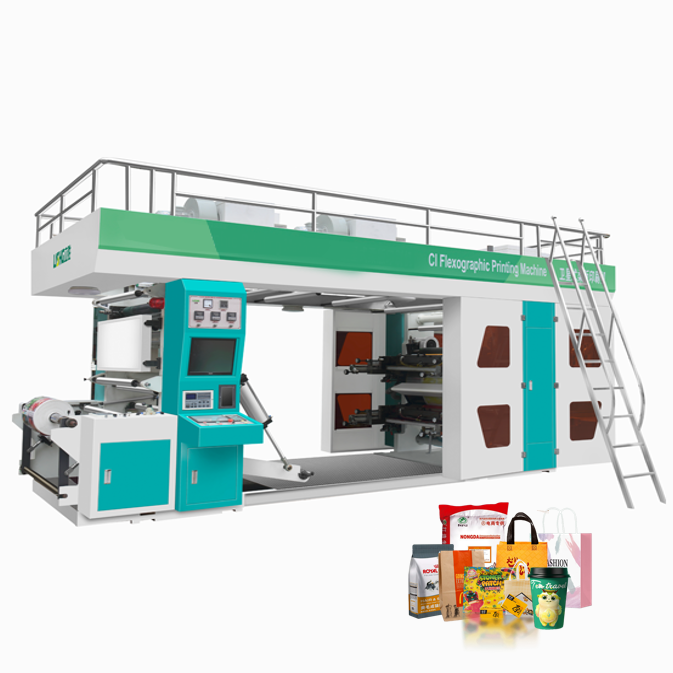

This central impression (central drum)flexographic printing machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.

Sample pictures

Plastic film printing effect
