Overview

Essential details

• Type:

• Heated Roll Laminator, Heated Roll Laminator

• Brand Name:

• PRINTYOUNG

• Model Number:

• YFMB-920B

• Place of Origin:

• Zhejiang, China

• Model:

• YFMB-920B

• Automatic Grade:

• Semi Automatic

• Max Laminating width:

• 920mm*1100mm

• Max laminating Speed:

• 30m/min

• Overall Dimensions:

• 2500x1700x1600mm

• Total Power:

• 15kw

• Carton Cube:

• 8.5m³

• N.W./G.W.:

• 1150kg/1250KG

Supply Ability

• Supply Ability

• 20 Set/Sets per Month

Packaging & delivery

• Packaging Details

wooden case

• Port

Shang Hai

• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	45	To be negotiated

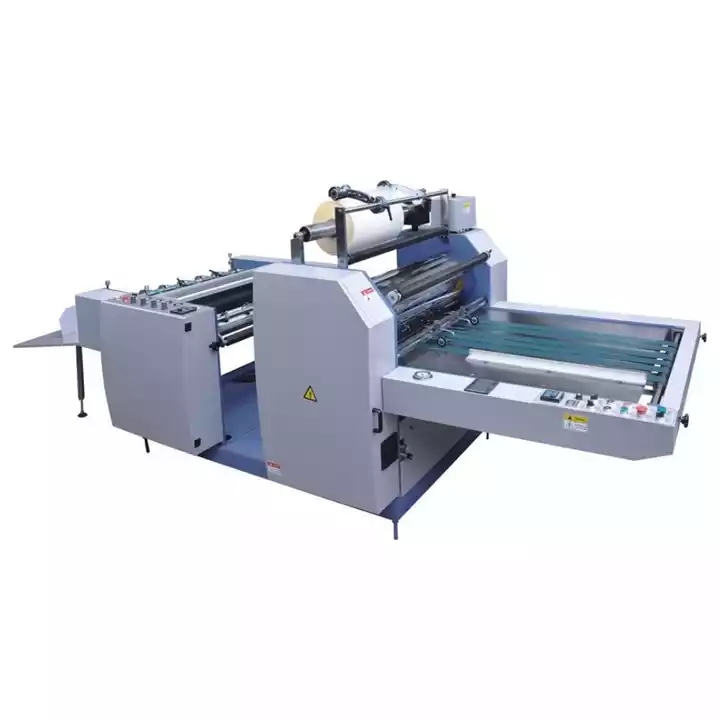

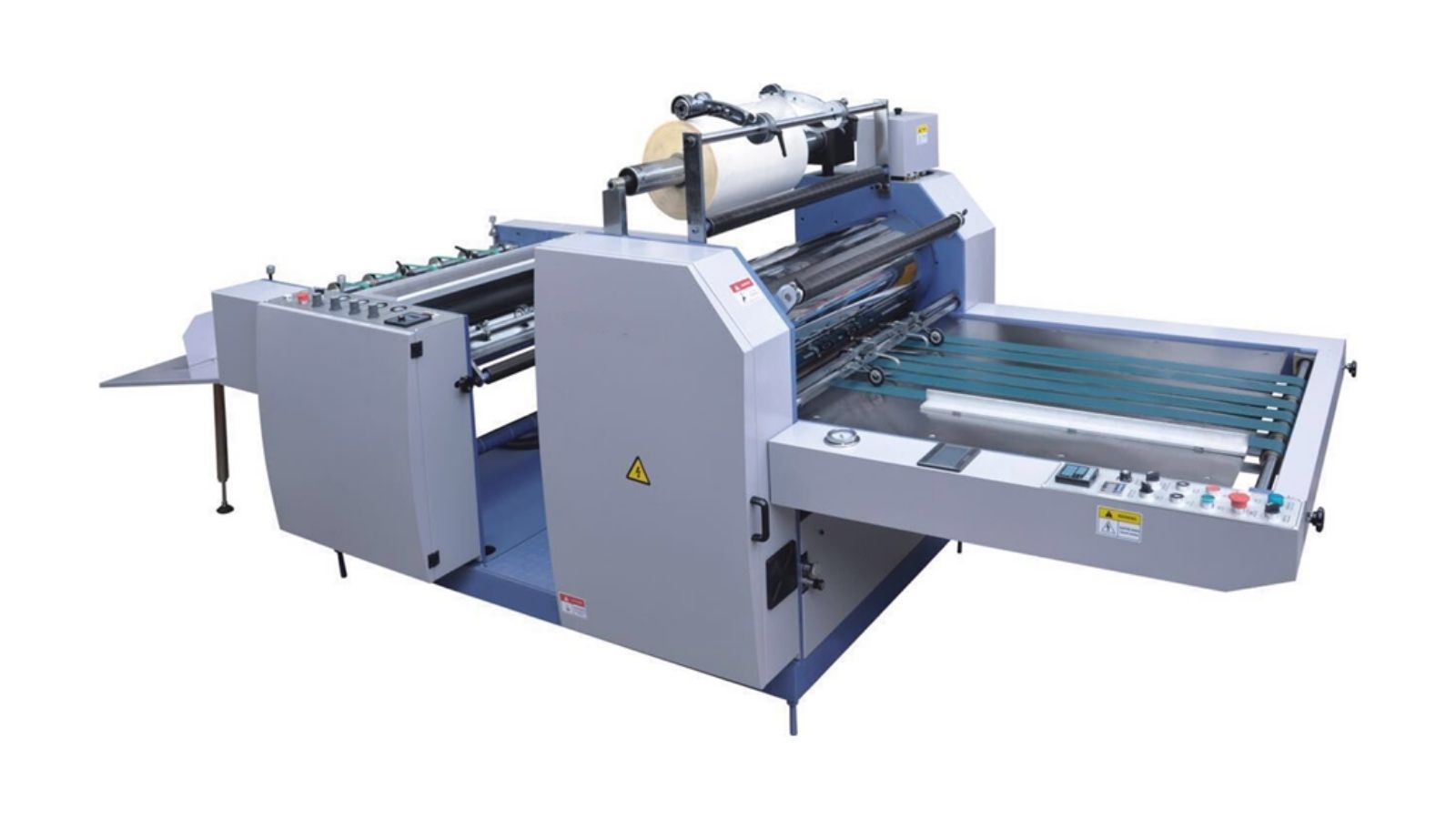

YFMB-920B Laminating Machine

Features

* Omron frequency converter is equipped for infinitely variable speed,and the operator can change the machine's speed easily and guarantee the machine's running stable.
* One-piece construction design makes the machine run more stably,and lengthens the machine's lifetime.
* Manual paper feeding.
* Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
* High precision of chrome plated heating roller is equipped with built-in oil heating system,which has excellent performance to temperature control.

The laminating temperature is adjustable upon applications.
* Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
* Air expansion shaft releases film,and precisionizes film release,and also makes the loading and unloading of film roll more convenient.
* The combination of air expansion shaft and braking device can adjust film release tension and speed.
* Film cutter cuts film width to make it meet paper size.

The cut film is left on the film release spindle.
* Film perforating wheel perforates film edge for the automatic cut of laminated paper.
* Anti-curvature device:when going through anti-curvature device,the laminated paper shall be leveled at once and wont curve again after cut.
* Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the text screen.
* The cut paper is sent to paper receiving table.

And the table height is adjustable upon applications.
