Material | PVC (good quality made by XCC) |
Size | 210*297mm(A4 Size),305*460mm,325*480mm,300*480mm 290*480mm,400*470mm,520*420mm or larger size |

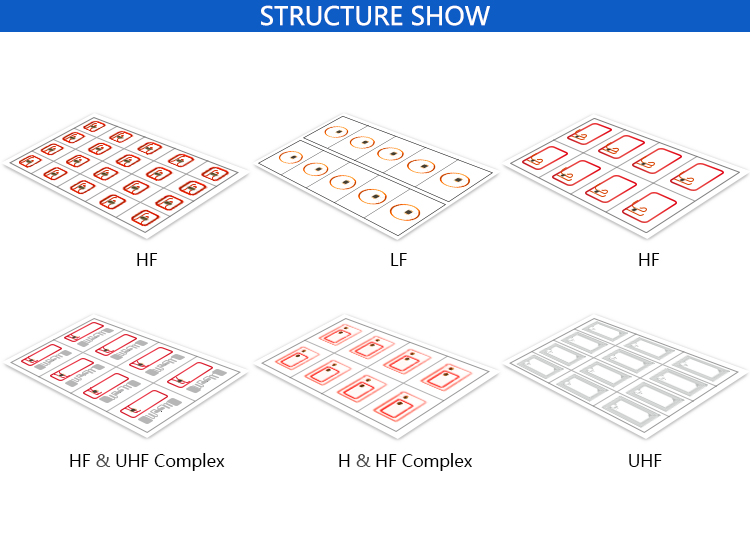

Layout | 2*4,2*5,3*8,5*5,5*6,6*7 or customized |
Thickness | 125Khz(LF):0.50~0.6mm
13.56Mhz(HF):0.30~0.5mm
860~960Mhz(UHF):0.30~0.6mm |
Chip | TK4100, EM4100/ 4305, Mifare S50, Desfire EV1-3 , FM11RF08 etc |
Frequency | 125khz / 13.56Mhz/ 860-960Mhz |
Protocol | ISO7815、ISO14443A/B，ISO 15693，ISO 18000-6B/6C |
Printing | One color prining of wireframe |
Lamination Effect | Plate steel Lamination / Teflon lamination |
Sample | Available |
Production Capacity | 40 millions/month |
Lead time | 7-10 Work days |

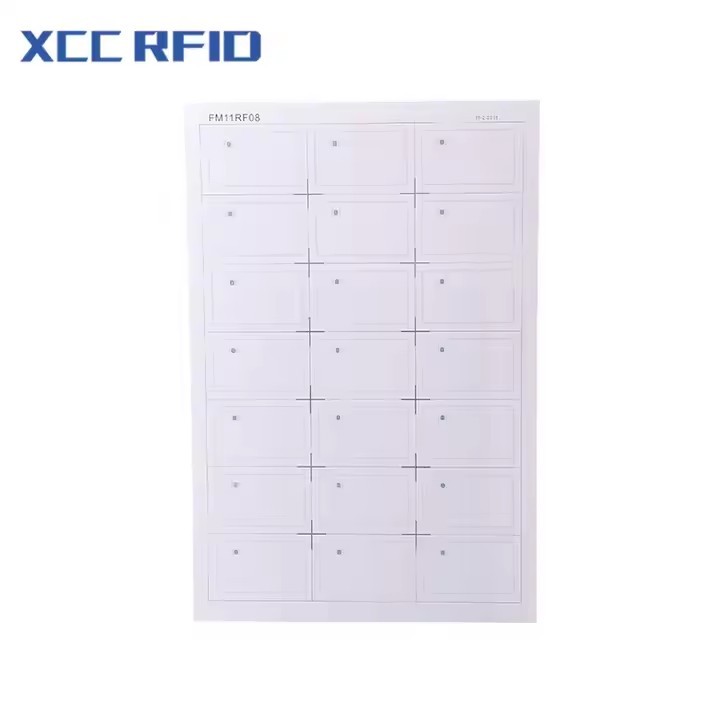

Application | RFID Inlay for Contactless or Contact Smart Card/RFID Card Making |
Certification | SGS/ROHS/CE/ISOCE RED |
