Next level of Memjet® inkjet performance, versatility and ease of operation
Product Highlights
Fast, continuous print color label printer powered by Memjet®
Print-to-cut or print roll-to-roll with optional Unwinder and Winder
Up to 1600 dpi print quality in full process color and monochrome. Speeds up to
12"/second.
User-friendly software provides precise print and printer control
Prints on: Plain paper to premium glossy and matte labels and photo paper
Media: Roll or fanfold labels, tags and paper
OPTIONS:
UW-1C Unwinder, fully-synchronized heavy duty, easily handles rolls up to 10” in
diameter
RW-1C Rewinder, fully-synchronized heavy duty for Roll-to-Roll printing
Specifications

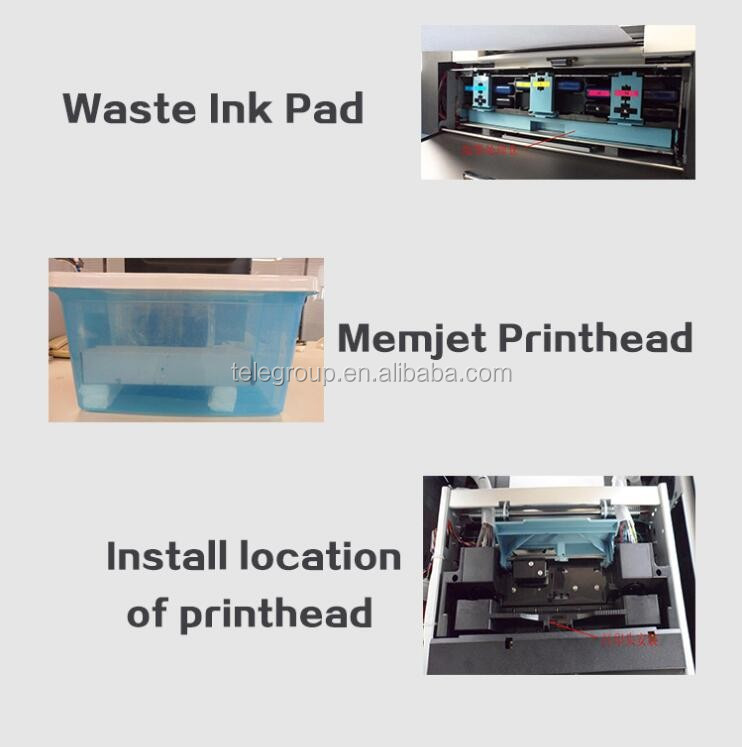

PRINT CARTRIDGE | Memjet® Replaceable Printhead |
SPEED | Up to 3600 letter size pages or 9000 envelopes/hour |
PRINT QUALITY | Best: 1600 x 1600 dpi |
IMAGE AREA | 8.5" x 17" (216 mm x 431.8 mm) |
FONTS | All True Type fonts available on PC |
PRINTS | Graphics, logos, barcodes |
MEDIA SIZE | Minimum: 3" x 4.2" (76 mm x 107 mm) |
MEDIA THICKNESS | Minimum: 0.004" (0.1 mm) |
MEDIA TYPE | Envelopes, single sheets, card stock, business cards |
FEEDER CAPACITY | Up to 600 #10 Envelopes |
Ink | Water-based Ink. Five 250 ml Ink Reservoirs (CMYKK) |
INK MONITOR | Viewable in M-Series (EWS) Toolbox |
DIAGNOSTICS | Viewable in M-Series (EWS) Toolbox |
FIRMWARE UPDATE | Flash update through M-Series (EWS) Toolbox |
SOFTWARE | WindowsTM Compatible Printer Drivers for |
PC INTERFACE | USB 2.0 |
NETWORK PORT | Ethernet |
COUNTERS | Operator resettable LCD job counter. |
DUTY CYCLE | 350,000 letter-sized/A4 sheets/month |
DIMENSIONS | 20" W x 24" L x 17.25" H (50 cm x 61 cm x 44 cm) |
WEIGHT | 75 lbs. (43.9 kg.) |
ELECTRICAL | 115-240 VAC, 50/60 Hz |
OPTIONS | Conveyor/Stacker |
Application
Fast, continuous print color label printer powered by Memjet®
