Introduce

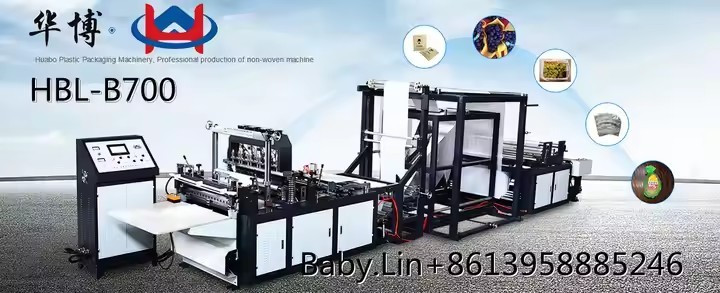

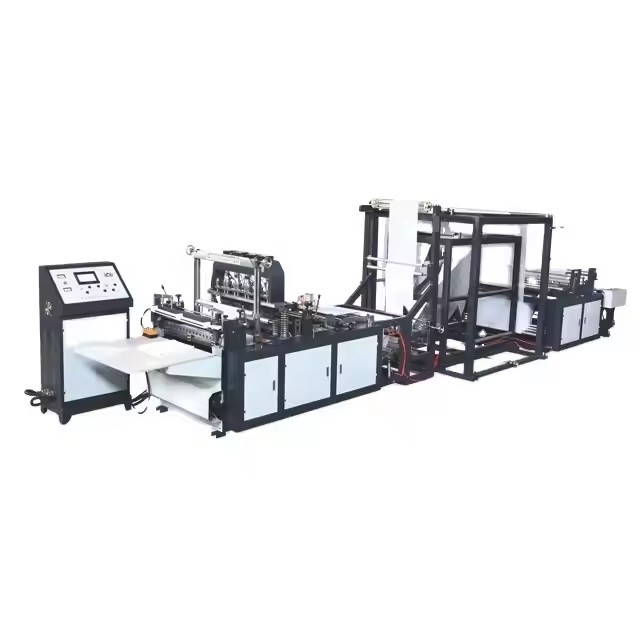

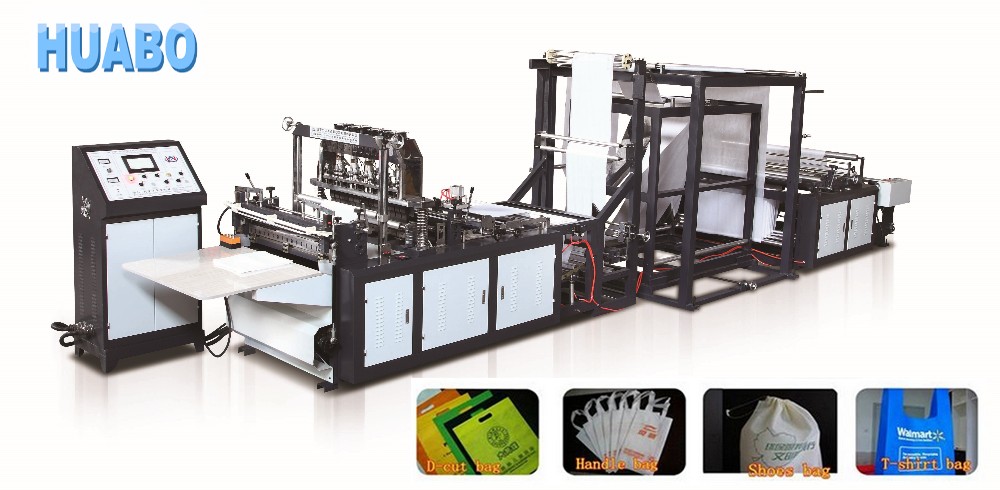

This machine takes non-woven fabric as raw materials. It can produce non-woven bags of various sizes and shapes, such as :
non-woven D cutting bags(flat bag), soft loop bags, strip through bags, gift bags, and other products packaging bags.
Main Technical Parameter
Type | HBL-B600 | HBL-B700 | HBL-B800 |
Production Speed | 20-120pcs/min | 20-120pcs/min | 20-120pcs/min |
Bag Width | 100-800mm | 100-800mm | 100-800mm |
Bag Length | 200-480mm | 200-580mm | 200-680mm |
Bag-Making Thickness | 30-120g | 30-120g | 30-120g |
Power Supply | 380V/220V | 380V/220V | 380V/220V |
Total Power | 12-18KW | 12-18KW | 12-18KW |
Overall Dimension (L*W*H) | 7.8m*2m*2.1m | 7.8m*2m*2.1m | 7.8m*2.2m*2.3m |
Weight | 1300KG | 1500KG | 1800KG |
Features:
1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.
