Min quantity:1Piece
Quantity:999Piece
Deliver:In 7 days
Overview
Essential details
Application:
Laser Marking
Working Accuracy:
0.001mm
Graphic Format Supported:
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Laser Type:
Fiber Laser
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
UMC4/Feeltek/JCZ
Place of Origin:
Hubei, China
Brand Name:
CHINA OV LASER
Laser Source Brand:
Raycus, JPT, IPG
Control System Brand:
UMC4/Feeltek/JCZ
Marking Head Brand:
Ovlaser, JCZ, feeltek
Weight (KG):
2 KG
Key Selling Points:
Easy to Operate
Warranty:
2 years
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining
Marking Area:
110mm*110mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years

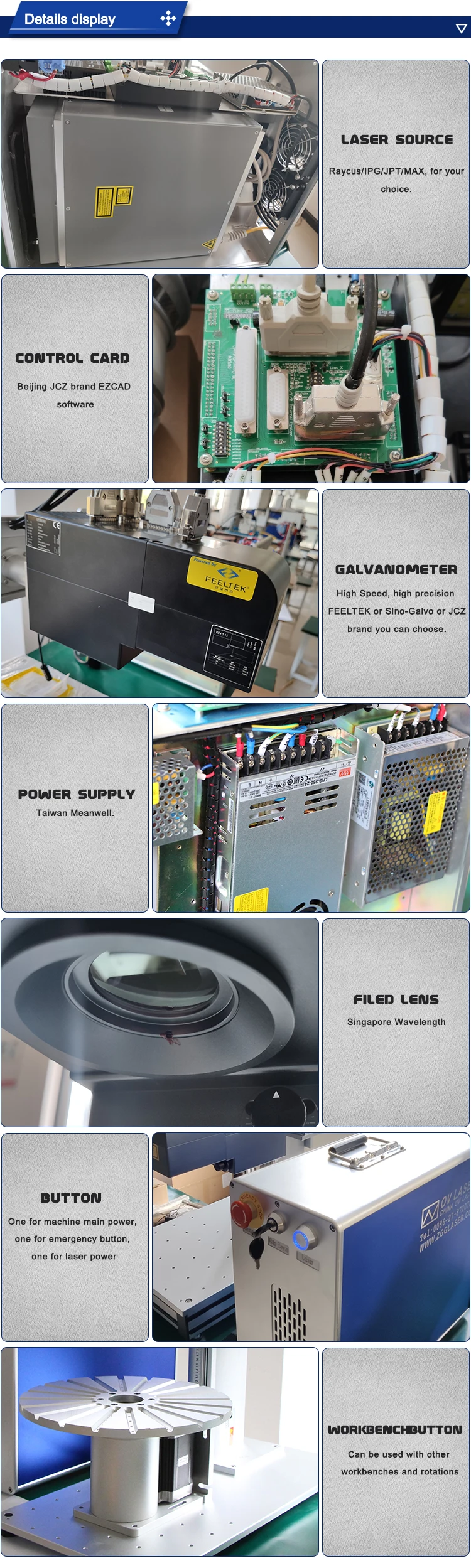

Core Components:
laser source
Mode of Operation:
Pulsed
Configuration:
hand-held
Feature:
Air-cooled
After-sales Service Provided:
Engineers available to service machinery overseas
Laser Source::
Raycus, JPT, IPG
Marking Area::
50-300mm

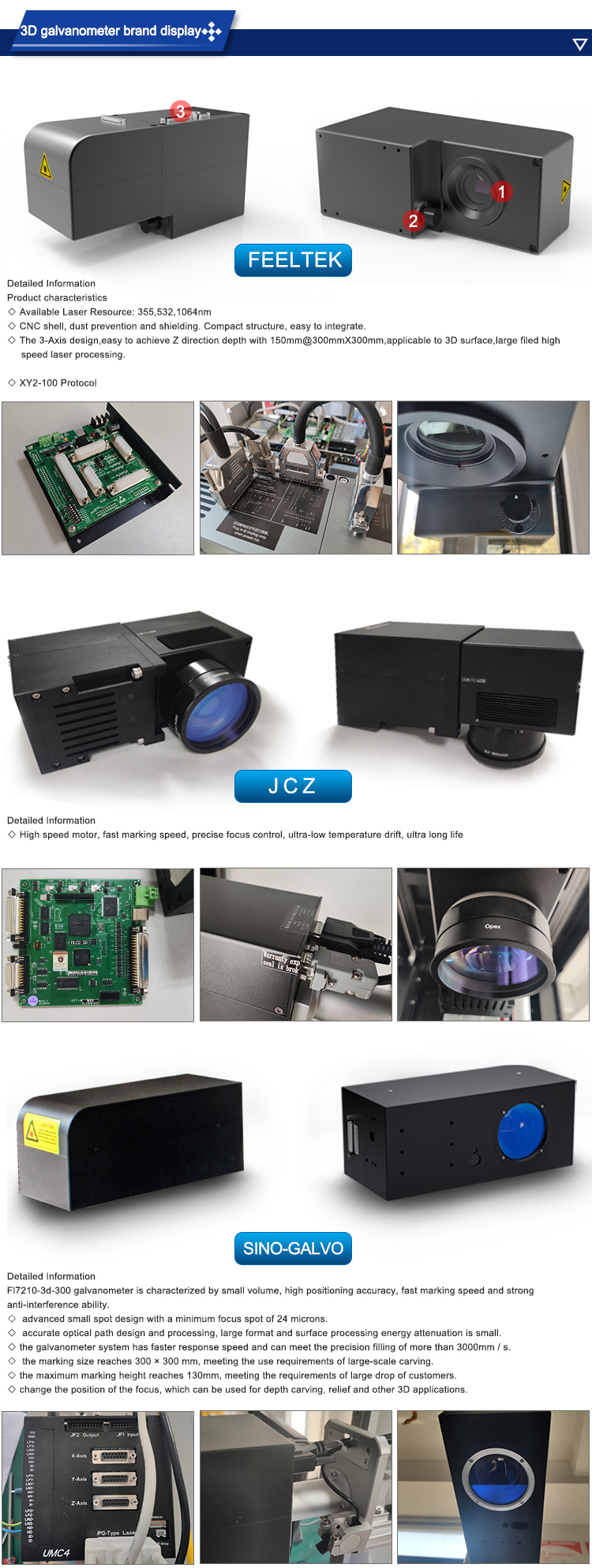

Galvanometer::
Higher scanning speed and marking accuracy
Field Lens::
SINO-GALVO/Feeltek/JCZ
Power Supply::
220V/50HZ/1-PH or 110v/60HZ/1PH
Applicable Material::
metal and some non-metal
Marking Speed:
7000mm/s
Marking Depth:
<=5mm
Laser Pulse Frequency:
20-100khz
Supply Ability
Supply Ability
500 Set/Sets per Month metal Plastic Acrylic Alumina FDA 3d fiber laser metal engraving
Packaging & delivery
Packaging Details
There are 3 layers of package:
waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case.
3D dynamic color mopa 100W fiber laser marking machine M7 JPT 30W 50W 60W 80W laser relief metal engraving machine
Port
Wuhan port or any other China ports
Picture Example:
Lead time:
Quantity(sets) 1 - 3 4 - 5 >5 Lead time (days) 15 20 To be negotiated
Video Description
3D dynamic color mopa 100W fiber laser marking machine M7 JPT 30W 50W 60W 80W laser relief metal engraving machine
Buying tips:
3D laser marking machine is suitable for laser marking of various metal or non-metal products of three-dimensional surface.
It is widely used for laser marking of mobile phone manufacturing, three-dimensional circuit, medical devices, dies, 3C electronics, automotive parts, electronic communications and other industries.
Product Description
Product advantage:
1-High-precision three-dimensional positioning technology, high-speed focusing and scanning system, laser beam fundamental mode, short pulse, high peak power, high repetition rate, bring ideal marking effect to customers.
2- 3-D graphics processing technology, friendly operation interface, suitable for dxf, plt, cnc, step, IGES and other format files;
3-High photoelectric conversion rate, long service life and easy maintenance.
4-The marking speed is fast and the processing efficiency is greatly improved.
Technical data:
laser | Item no. | OV LM-30/50/100 | |
output power | 30W/50W/100W | ||
pulse energy | 1mj | ||
repetitive frequency | 30K-500KHZ | ||
Laser wavelength | 1064nm | ||
Technology | Indicator laser | Red light 655 nm/output 1.0 mW | |
Marking area | Standard | optional | |
110*110mm | 175*175mm/300*300mm 600*600mm/800*800mm | ||
Adjustment depth range | ±20cm | ±20cm | |
Minimum line width | 0.03mm | 0.03mm | |
software | Marking speed | ≤10000m/s | ≤10000m/s |
operating system | Windows XP/7/8/10 | ||
Font support | Ture type,AUTOCAD Single line font,custom | ||
One dimensional barcode | CODE39/CODE128/ITF/CODABAR/EAN/UPC | ||
Two dimensional barcode | QR/PDF417/Datamatrix(ECC200) ect. | ||
File | PLT/DXF/DWG/SVG/STL/BMP/JPG/JPEG/PNG | ||
Machine | Environmental requirements | Temperature: 10-35℃ Humidity: 5-75% | |
Input | 110V/220V, 50-60Hz | ||
Power waste | ≤1500W | ||
Cooling | air cooling/water cooling | ||
Size | 1400*850*1699mm(For reference) | ||
Control interface | PCI-Express/USB-2.0 option | ||
