Overview
Essential details
Application:
Laser Engraving
Applicable Material:
All metal and some non-metal
Engraving Area:
110*110mm
Laser Type:
Fiber Laser
Engraving Speed:
7000mm/s
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, SVG
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Place of Origin:
Hubei, China
Brand Name:
OEM
Dimension(L*W*H):
800*500*250mm
Laser Source Brand:
Raycus JPT IPG Max
Laser Head Brand:
OV LASER
Servo Motor Brand:
OV LASER
Guiderail Brand:
OV LASER
Control System Brand:
JCZ / FEELTEK
Optical Lens Brand:
OV LASER
Weight (KG):
73 KG
Key Selling Points:
High-accuracy
Warranty:
2 years
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Laser source
Mode of Operation:
Pulsed
Configuration:
stand-alone
Feature:
3D
Applied materials:
metal , hard plastic
Laser source:
Raycus , JPT
Galvo Head:
3D galvo head
Marking machine Speed:
7000mm/s
Contral card:
BJJCZ card
Powers available:
30W 50W 60W 80W 100W
Widely used for:
jewelry engrave cut , metal coin engrave
Marking Area:
70mm*70mm--- 300mm*300mm
Optional functions:
auto focus , motorized Z axis , rotary , camera ,etc
Curved surface marking:
YES
Supply Ability
Supply Ability
100 Set/Sets per Month
Packaging & delivery
Packaging Details
There are 3 layers of package:
waterproof thickening plastic bag;
foam to protect from shaking;
solid export wooden case.
Port
Shanghai , Shenzhen , Guangzhou ,Ningbo
Picture Example:
Lead time:
Quantity(units) 1 - 1 >1 Lead time (days) 15 To be negotiated
Video Description
Pls click the right button "Contact Supplier" to get video and free marking test .
Whatsapp 0086-13707152583
E.mail: sales1(at)86ovlaser.com
* Laser Solution Can be Customized ~ Factory Price Can be Negotiable ! *
Product Description
Differences between 2D and 3D laser marking machine
1). 3D means Dynamic focusing, compare with ordinary 2D laser machine, 3D laser marking machine adopts different galvo head. Ordinary 2D scanning head only have two mirrors, but 3D scanning head have three mirrors. The third mirrors can move forward and backward. This is the key technology of 3D laser marking machine.
2). 3D laser marking machine outstanding functions are deep engraving, relief engraving and curve metal marking.
3). When 2D laser need to mark curve surface, it should be added one rotary fixture. However,3D laser marking machine can mark curve metal directly. Higher speed and higher precision. Mostly, easy to operation.
4). 3D laser marking machine is coming with 3D galvanometer head and 3D software. Other parts almost the same as 2D laser marking machine.

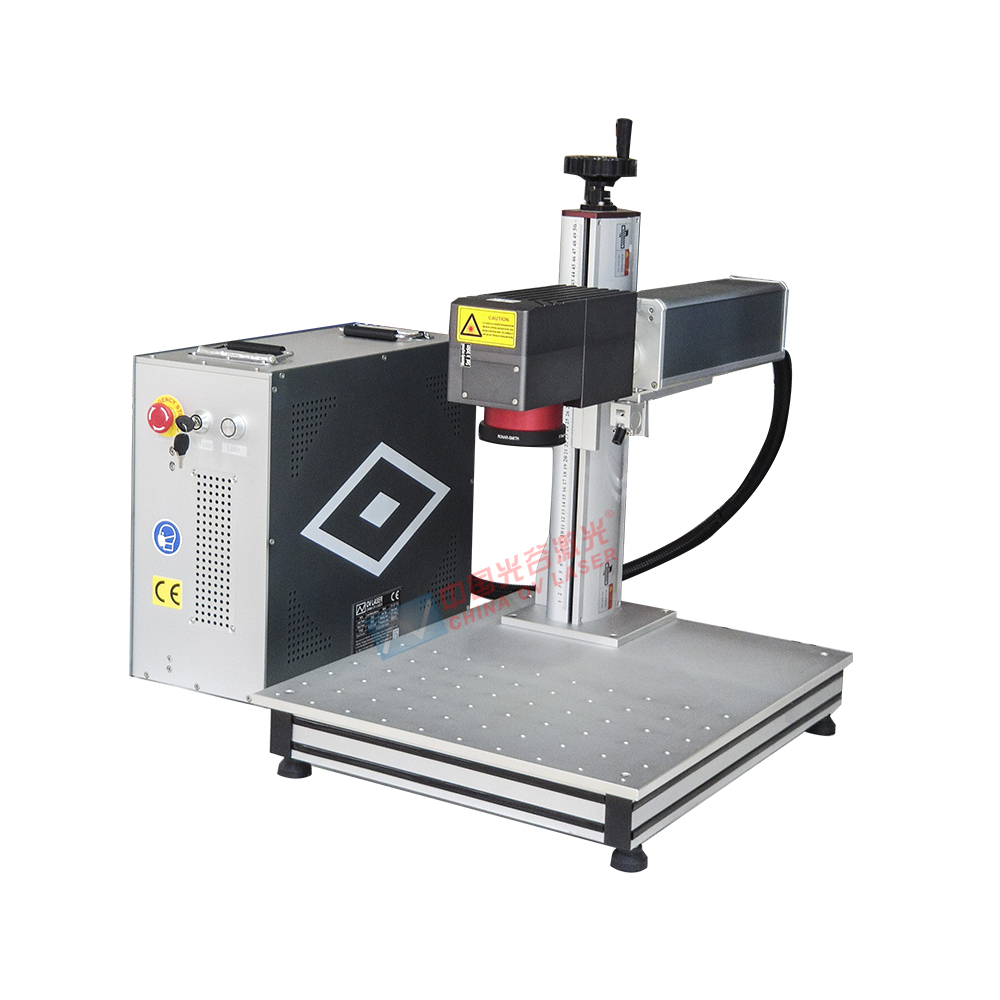

100W JCZ 3D galvo laser marking machines

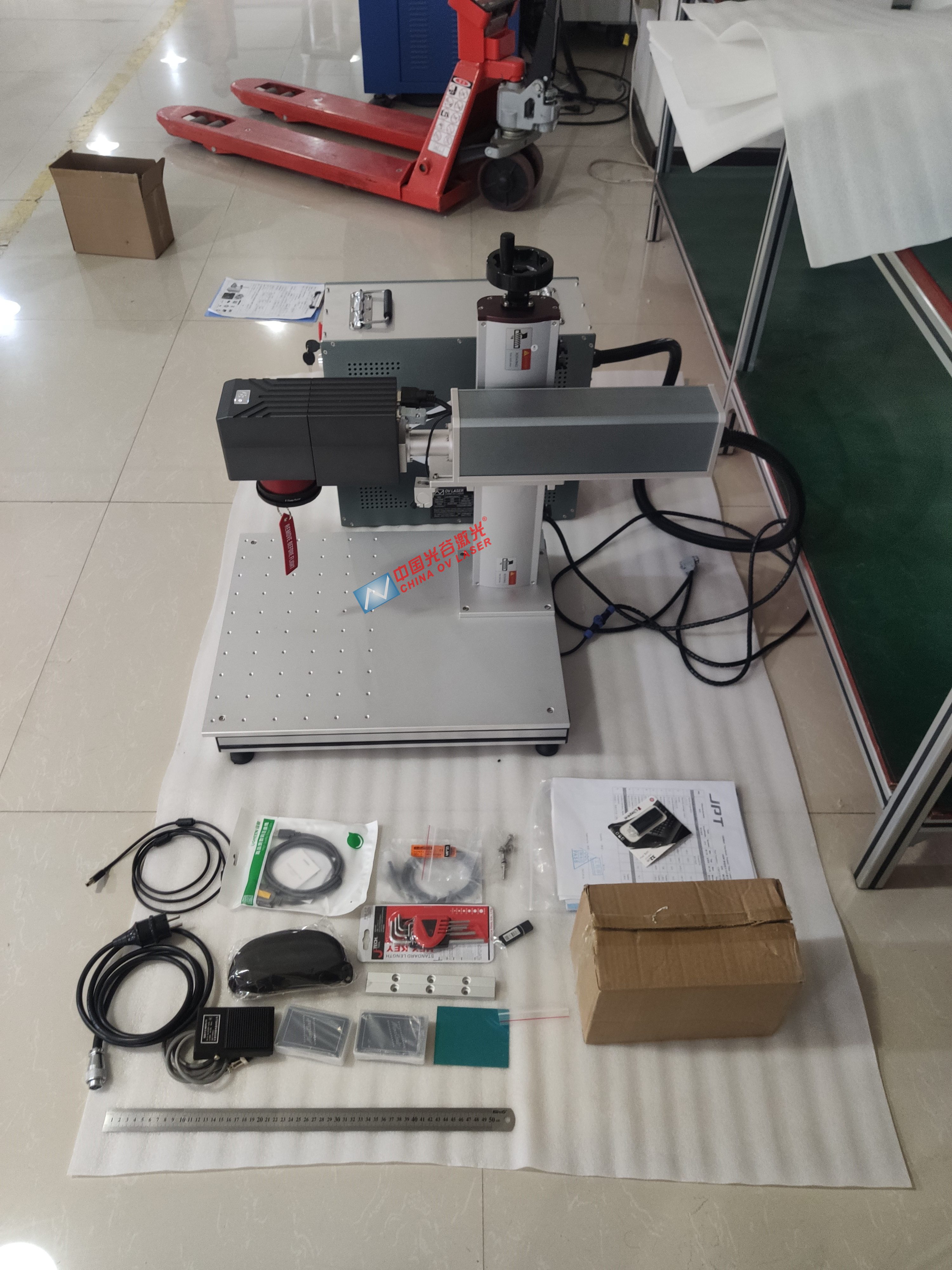

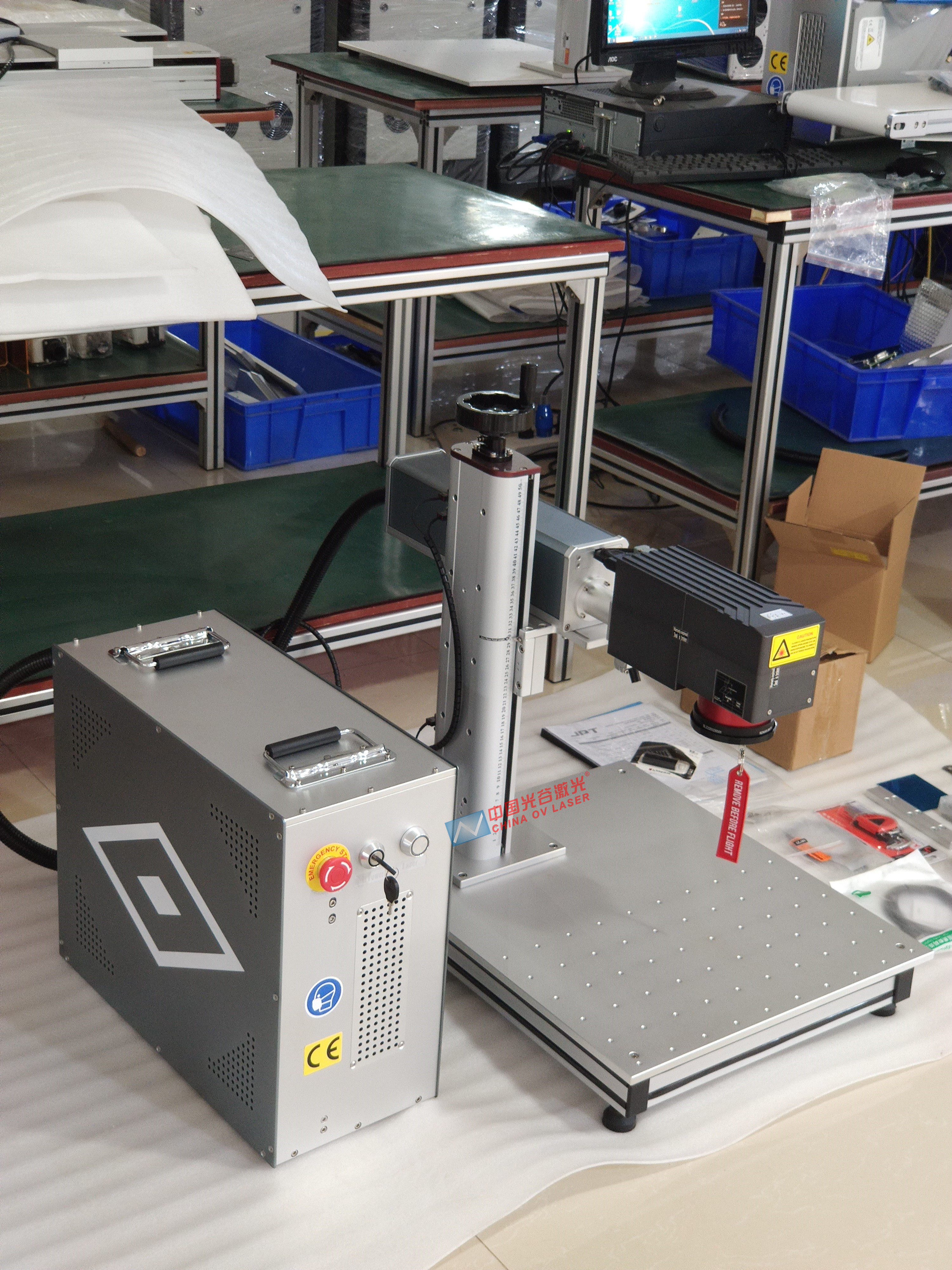

100W JCZ 3D galvo laser marking machines actual photo :

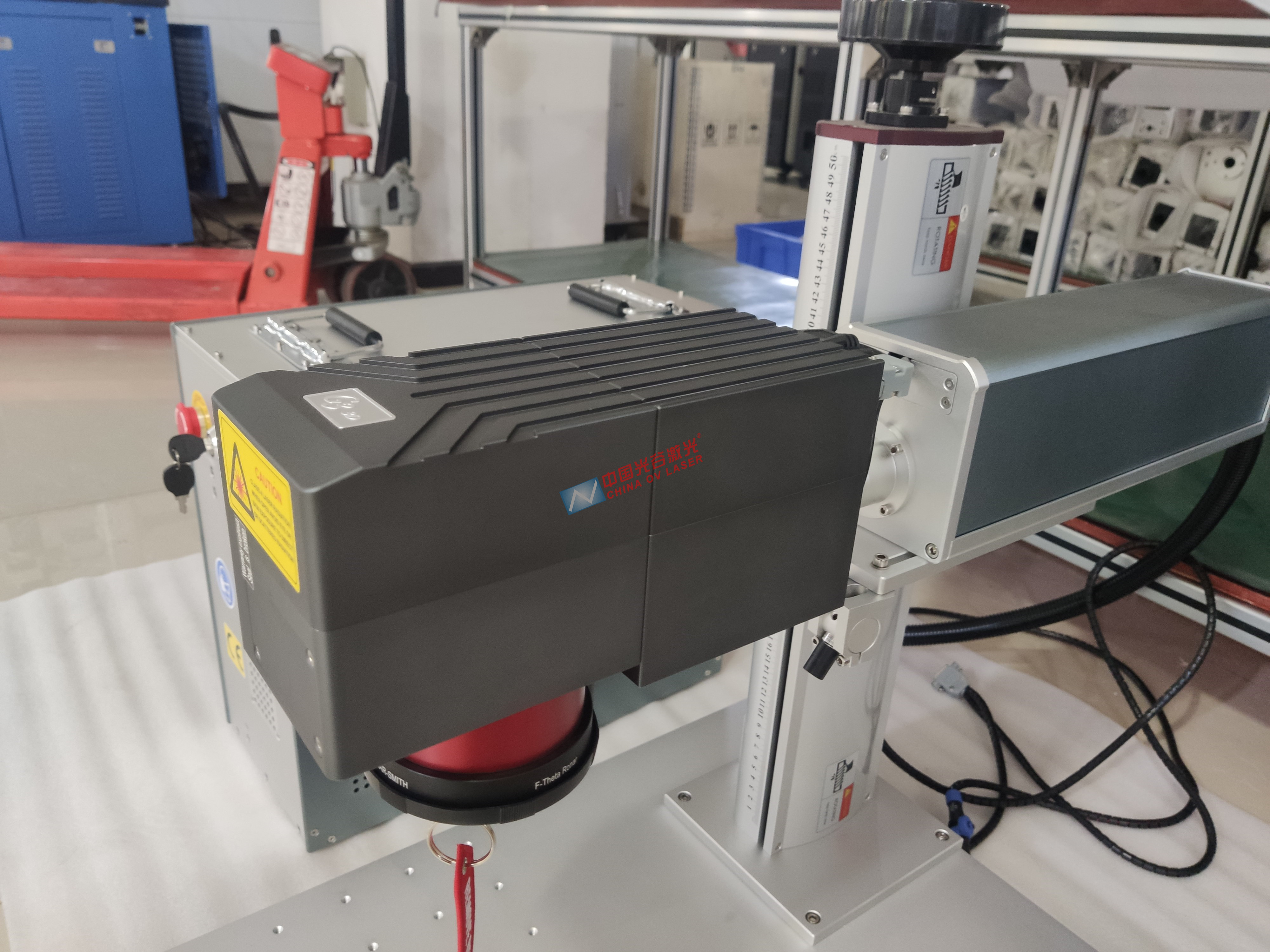

JCZ 3D Galvo Head

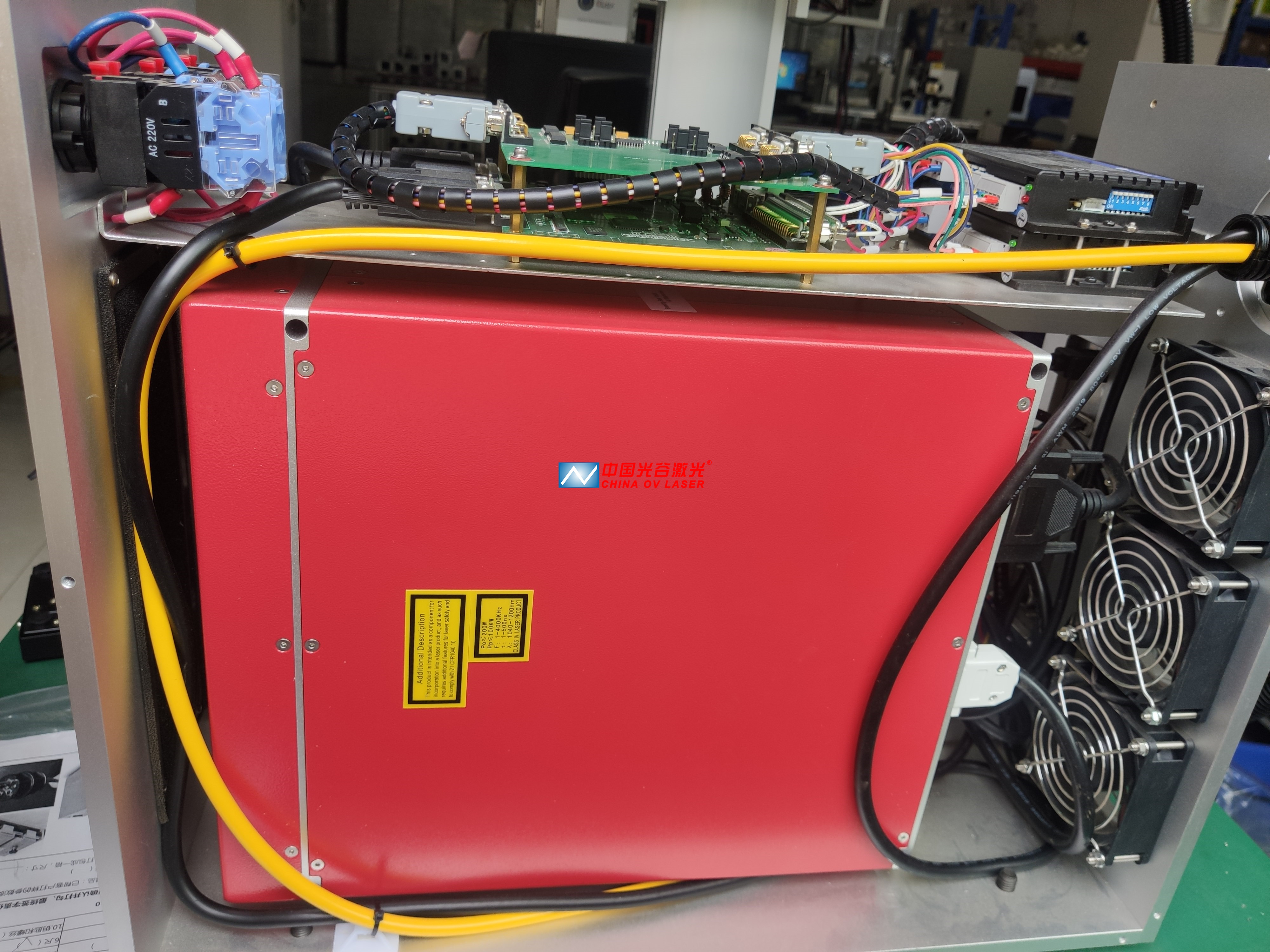

100W JPT Mopa M7 Laser sources
